SKL-12 Rail Fastening System

Intermediate Plate
Dowel
Flat Washer
T-head Bolt
Rail Pad
Share:

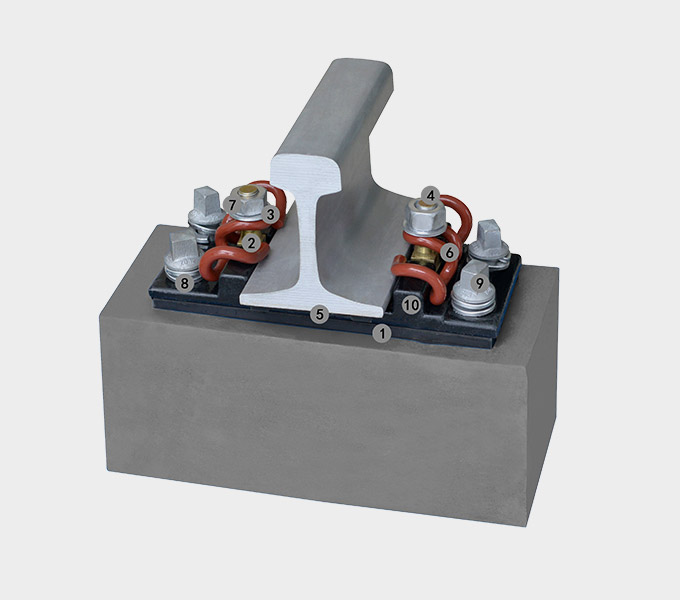

Introduction
1. Intermediate Plate
2. Dowel
3. Flat Washer
4. T-head Bolt
5. Rail Pad
6. SKL-12 Rail Clip
7. Nut
8. Spring Washer
9. Screw Spike
10. Tie Plate
Technical Support
SKL-12 Rail Fastening Systems
Item Material Quantity
SKL-12 Spring Clip 60Si2MnA 60Si2CrA 55Si2Mn 38Si7 2
C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,
Cr:0.70-1.00 P:≤0.03,
S:≤0.03
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,
Cr:≤0.35
P:≤0.03, S:≤0.03
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Intermediate Plate EVA 1
Dowel HDPE 2
Flat Washer Q235 2
T-head Bolt Q235 2
Rail Pad Rubber 1
Nut Q235 2
Spring Washer 38Si7 4
Screw Spike Q235 4
Tie Plate Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel 1
Clip Fatigue life 3-5 million cycles without breaking
Surface Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements
Package Moven bag, Box or other upon requirements
Delivery Depends on order
