KP Rail Clamp System from China Factory - Anyang Railway Equipment

Introduction

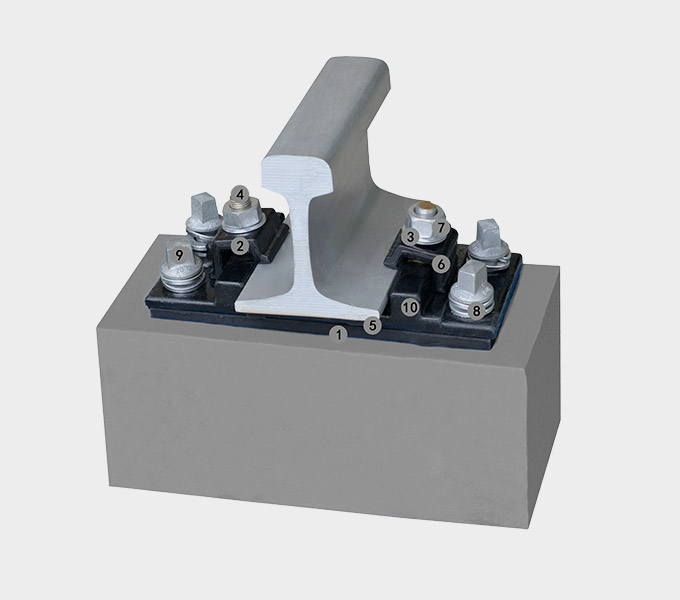

1. Intermediate Plate
2. Dowel
3. Flat Washer
4. T-head Bolt
5. Rail Pad
6. KP Clamp
7. Nut
8. Spring Washer
9. Screw Spike
10. Tie Plate

Technical Support

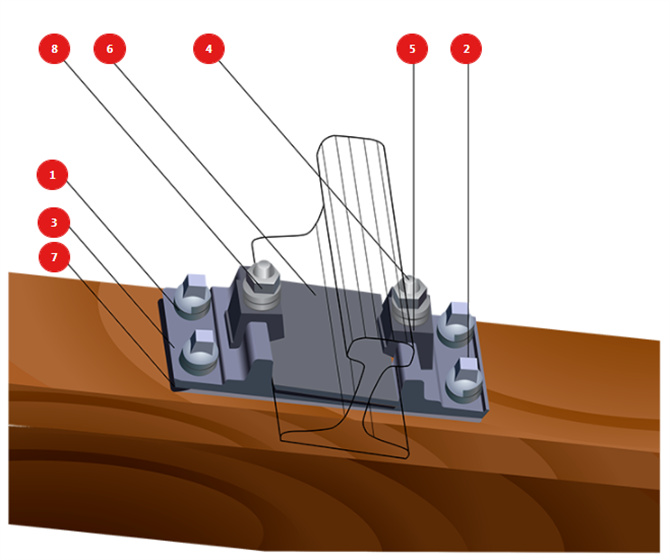

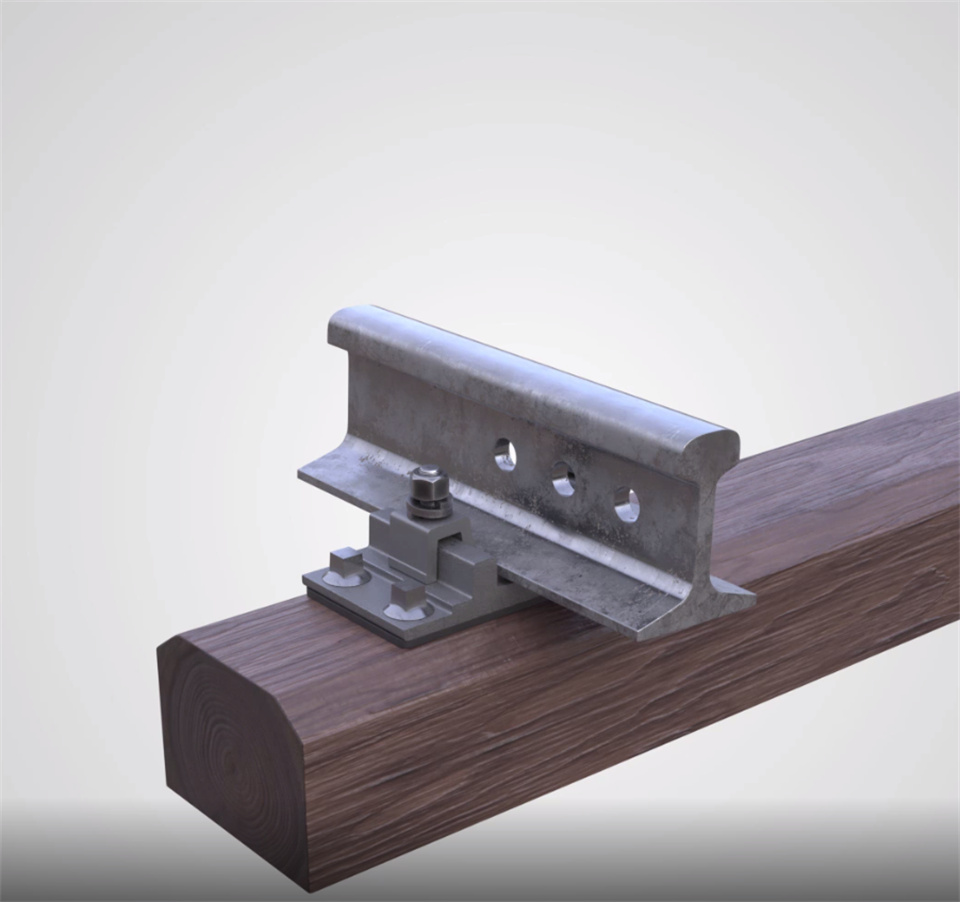

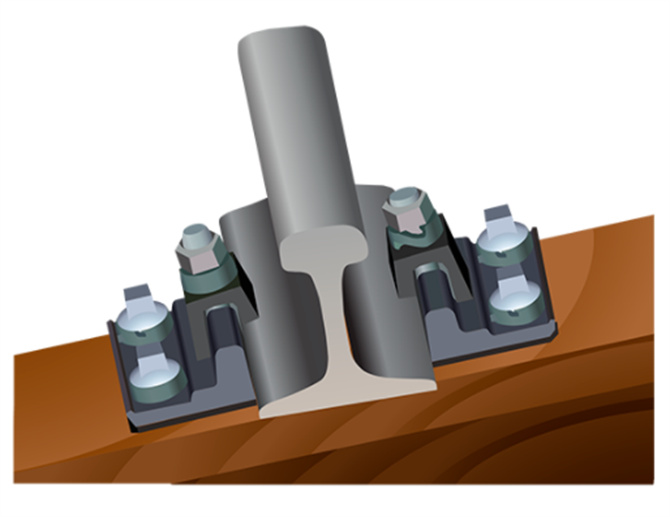

KP RAILWAY RAIL CLAMP FASTENER SYSTEM
Item	Material	Quantity
Intermediate Plate	EVA	1
Dowel	HDPE	2
Flat Washer	Q235	2
T-head Bolt	Q235	2
Rail Pad	EVA	1
KP Clamp	Q235	2
Nut	Q235	2
Spring Washer	38Si7	4
Screw Spike	Q235	4
Tie Plate	Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel	1
Surface	Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements
Package	Moven bag, Box or other upon requirements
Delivery	Depends on order
