SKL Rail Tension Clip Made In China Factory

Introduction

Anyang Railway Equipment Co., Ltd(AT) has 8 automatic rail clip production lines, realize the automatic loading, hot forming, and heat treatment of rail clips, the maximum output is 120,000 Pcs/day.
Anyang Railway Equipment Co., Ltd(AT) is professional manufacturer and supplier SKL Rail Tension Clamp, Rail Elastic Clip for railway fastening systems from China.

Technical Support

Item	SKL-1 rail clip	SKL-3 rail clip	SKL-12 rail clip	SKL-14 rail clip
Diameter	φ13	φ13	φ13	φ13
Weight	0.48kg/pc	0.48kg/pc	0.53kg/pc	0.53kg/pc
Material	60Si2CrA	60Si2CrA	38Si7	60Si2MnA
Hardness	42-47HRC	42-47HRC	42-47HRC	42-47HRC
Surface	Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting
Package	Moven Bag, Pallet
Delivery	Depends on order

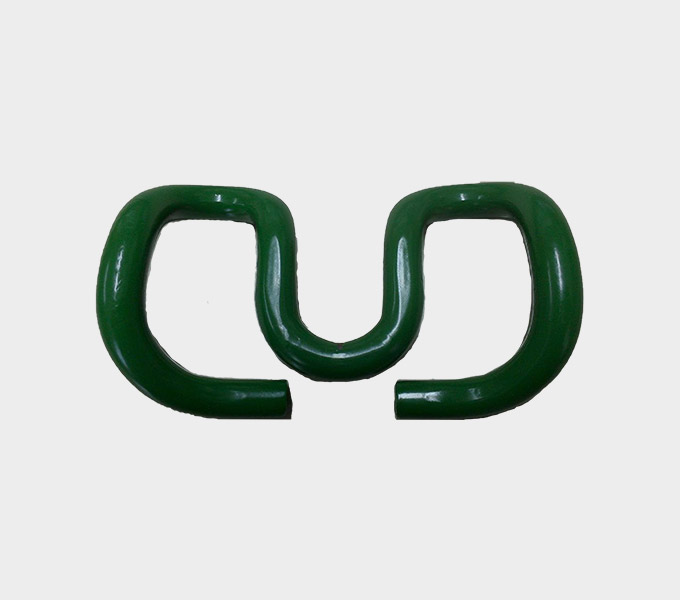

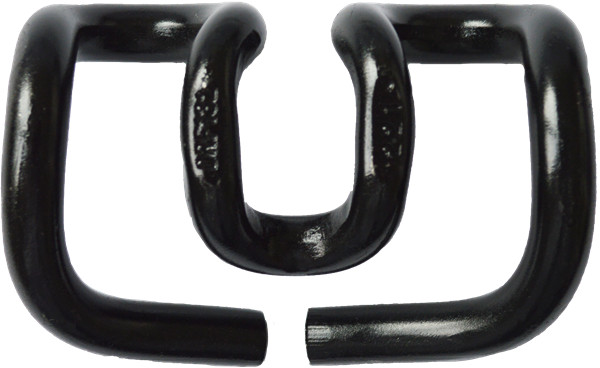

1. SKL-3 Rail Clip

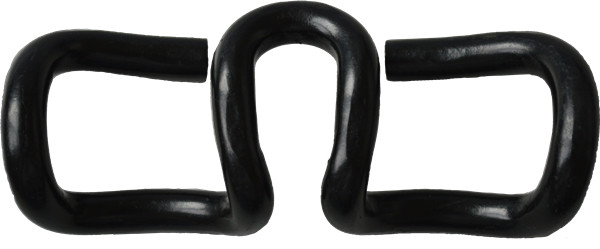

2. SKL-12 Rail Clip

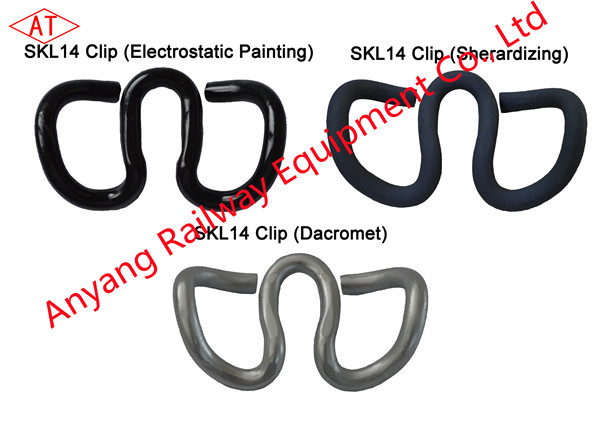

3.SKL-14 Rail Clip

SKL-14 Rail Tension Clip Manufacturer - Anyang Railway Equipment Co., Ltd

Anyang Railway Equipment Co., Ltd(AT) is professional manufacturer and supplier of railway fastening systems, with clip I, clip II and clip III as our most popular products, we also offer other types spring clips like E-type clips, high speed railway clips, SKL rail clips, Russia rail clips, Fast Clips, Korea clips, Deenik clips, Nabla spring blade, etc.
Anyang Railway Equipment Co., Ltd(AT) has 8 automatic spring clips production lines and 2 manual spring clips production lines. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.
Anyang Railway Equipment Co., Ltd(AT) is able to 50 million pcs of spring clips per year for clients both at home and abroad.
