China E Type Rail Elastic Clip for Fastening Systems Manufacturer

Introduction

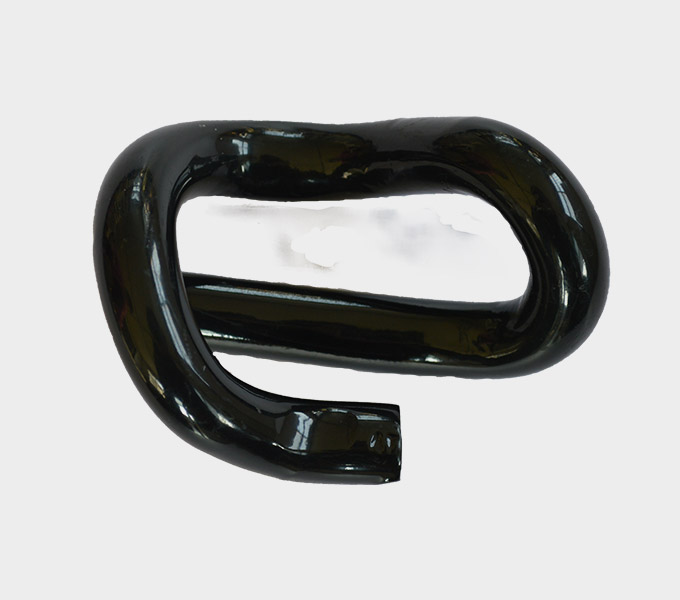

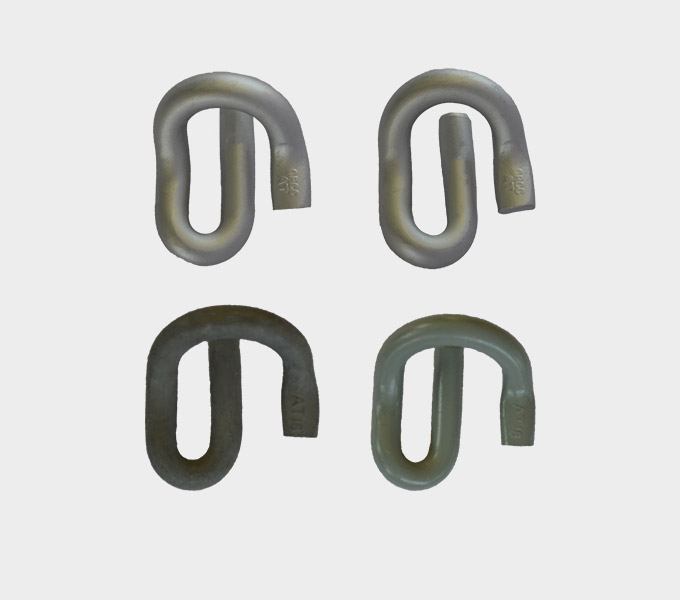

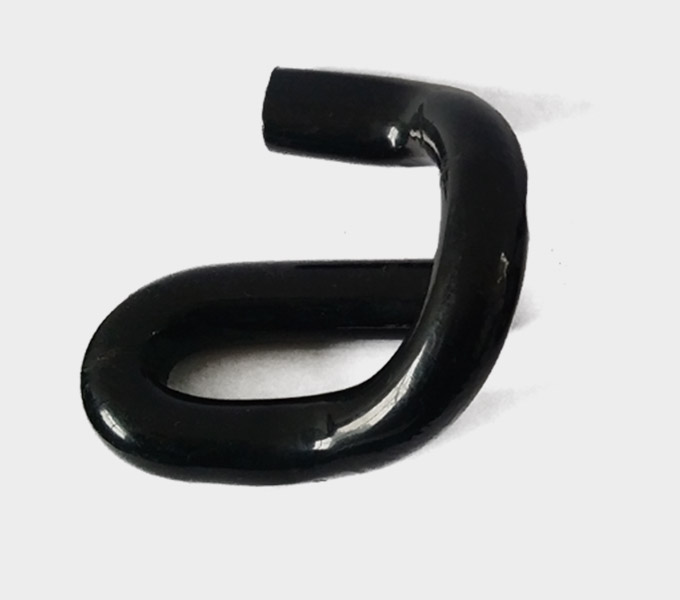

E Type Rail Elastic Clip is one of the common track fasteners in the railway fastening system, which is used to provide positive and durable track alignment under harshest working conditions, thus extending the life of railway track. Generally, rail elastic clip is made of forged spring steel with a diameter range from 18mm to 23mm, the main function of rail clip is to fasten railroad sleeper and steel rail together. The rail clip is considered as one of the best ways to ensure that rails not move, bend, warp, etc.

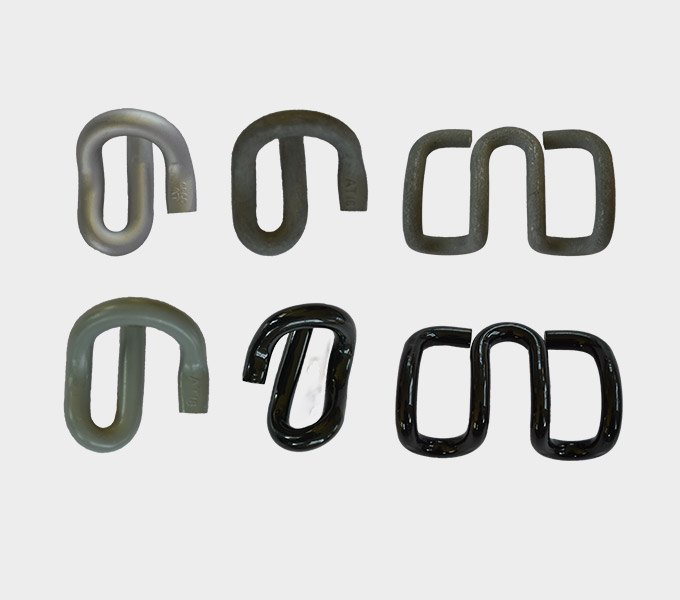

Elastic rail clips have various types, including rail e- clip, Nabla rail clip, SKL rail clips, Deenik clip, crane rail clip, Russia rail clip as well as other standard rail clips. Elastic rail clips are widely used for different applications up to different types and sizes, such as E2007, E2055, E2056, etc for separate rail fastening systems and E1809, E1817, E1819 etc for non-separate rail fastening systems.

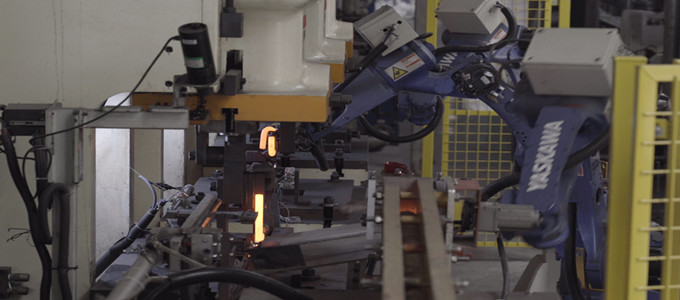

Anyang Railway Equipment Co., Ltd(AT) has 8 automatic rail clip production lines, realize the automatic loading, hot forming, and heat treatment of rail clips, the maximum output is 120,000 Pcs/day.

Technical Support

Item	E-type rail clip
Chemical Composition	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
	C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	44-48 HRC
Fatigue Life	3-5 million cycles without breaking
Surface	Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting
Standard	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements
Package	Moven Bag, Pallet
Delivery	Depends on order

Model	Diameter	Material	Under Pressure	HRC	Weight
E1609	Ø 16mm	60Si2MnA	≥950kg	44-48	0.43kg/pc
E1809	Ø 20mm	60Si2MnA	≥950kg	44-48	0.61kg/pc
E1813	Ø 18mm	60Si2MnA	≥950kg	44-48	0.62kg/pc
E2001	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2009	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2039	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2007	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2055	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2056	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc
E2063	Ø 20mm	60Si2MnA	≥950kg	44-48	0.80kg/pc

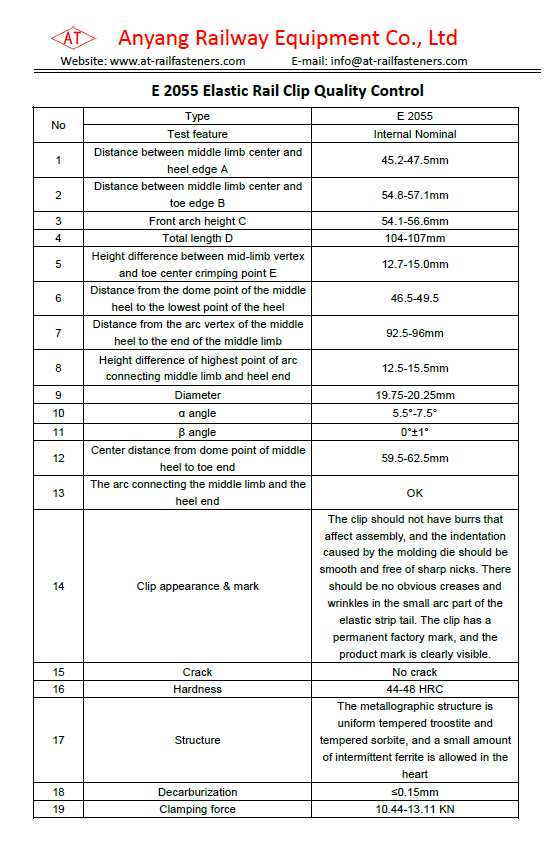

E2055 Rail Clips for Railway Track Fastening Manufacturer--Anyang Railway Equipment Co., Ltd

China Factory E2055 Rail Elastic Clips for Railway Track Fastening System -Manufacturer - Anyang Railway Equipment

Anyang Railway Equipment Co., Ltd(AT) is a professional manufacturer and supplier of railway fastening systems, with clip I, clip II and clip III as our most popular products, we also offer other types spring clips like E-type clips, high speed railway clips, SKL rail clips, Russia rail clips, Fast Clips, Korea clips, Deenik clips, Nabla spring blade, etc.

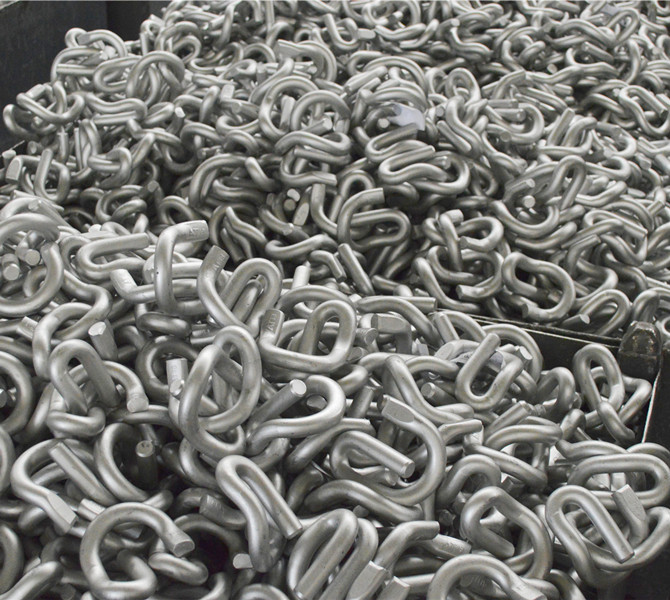

Anyang Railway Equipment Co., Ltd(AT) has 6 automatic spring clips production lines and 2 manual spring clips production lines. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.
Anyang Railway Equipment Co., Ltd is able to 50 million pcs of spring clips per year for clients both at home and abroad.
