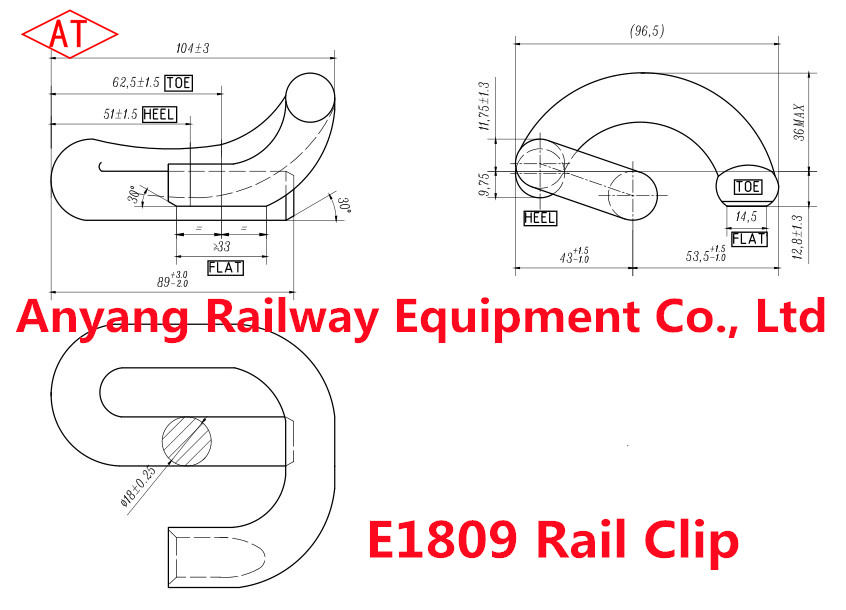

E1809 Railway Rail Elastic Clip

Share:
Introduction
  1. It is Hot Forged from Spring Steel Material Bar of 18mm Dia
  2. Surface of Clip: It is free from burrs * rough surface and not injurious when Handling.
  3. Standard: BS
  4. Weight of Clip: 0.61Kg / Pc
  5. Coating:  Plain, Oiled, Dacromet, Electrostatic Sprayed in place of Bituminous as China government has banned it due to high polluting factor.
  6. Hardness: HRC 44-48 range
  7. Chemical Composition: 60Si2Mn
  8. ISO Certification: Quality Management System Certification
  9. Packing: In Woven Bags Then in Pallets
Technical Features
1. Dimension tolerance: p/m 1/32"
2. Nominal Toe Load: 2750 Lbs
3. Working Deflection: 7/16"
4. Clamping Force: 2950 Lbs when 7/16" deform of Toe
5. Fatigue Test:  5,000,000 Cycles
6. Fatigue Life: 3 - 5 Million Cycles without breaking

China Made E1809 Railway Rail Elastic Clip, Spring Clips - Anyang Railway Equipment Co., Ltd



Anyang Railway Equipment Co., Ltd(AT) provides high quality E18089 Rail Clips for Railway Rail Fastener System, AT offers a warranty for a period of 12 Months from date of acceptance & certification in Purchaser's country against defects arising as a result of poor workmanship inferior quality of materials used in the manufacture and or any other defects which are not originated as a result of incorrect handling or faulty operations by the Purchaser.
