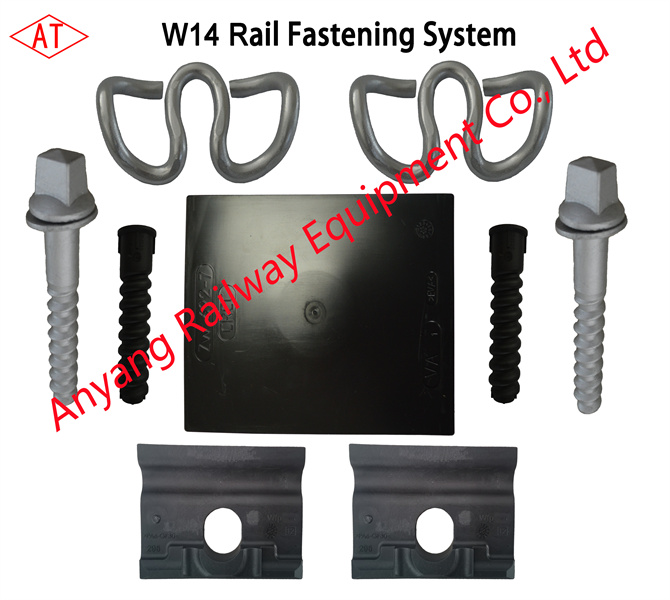

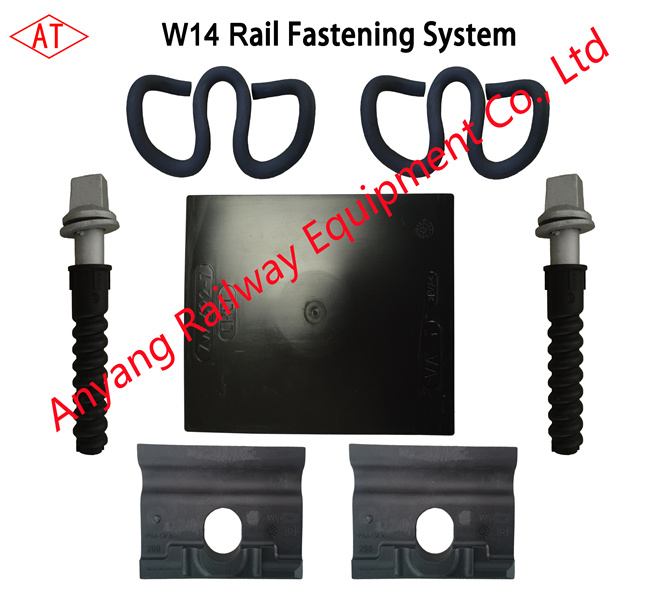

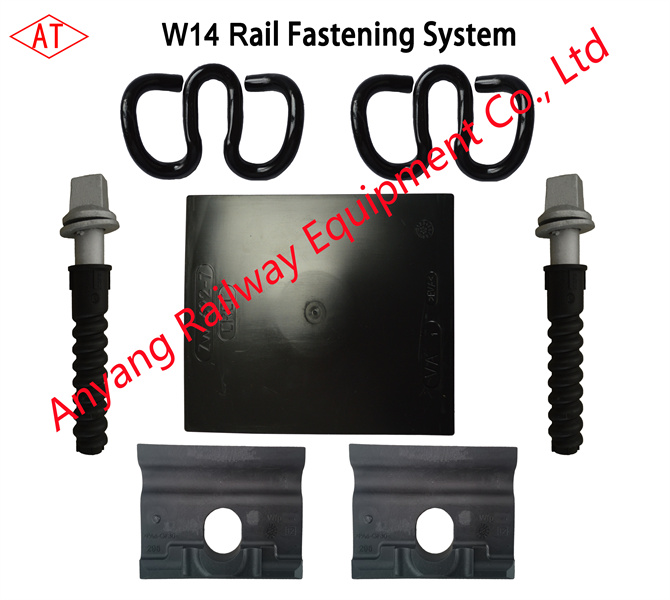

SKL-14 Rail Clip (SKL-14 Tension Clamp) for W14 Fastening System

Anyang Railway Equipment Co., Ltd(AT) has 8 automatic rail clip production lines, realize the automatic loading, hot forming, and heat treatment of rail clips, the maximum output is 120,000 Pcs/day.
Anyang Railway Equipment Co., Ltd(AT) is professional manufacturer and supplier SKL Rail Tension Clamp, Rail Elastic Clip for railway fastening systems from China.
Technical Support
Item SKL-14 rail clip
Diameter φ13
Weight 0.508kg/pc
Material 60Si2Cr/38Si7
Hardness 42-47HRC

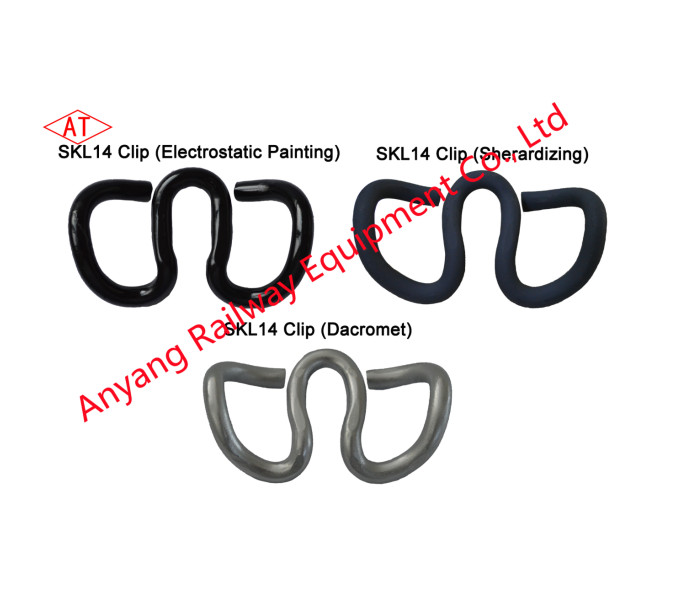

Surface Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting
Package Moven Bag, Pallet
Delivery Depends on order
  • The tension clamps shall be heat treated to achieve a surface hardness in the range 40-46HRC.
  • he tension clamp mounted on Rail must achieve a clamping force of 2 x 10KN = 20 KN, per rail set at a spring deflection of 13mm.
  • Fatigue test:5 million cycles,no fracture.

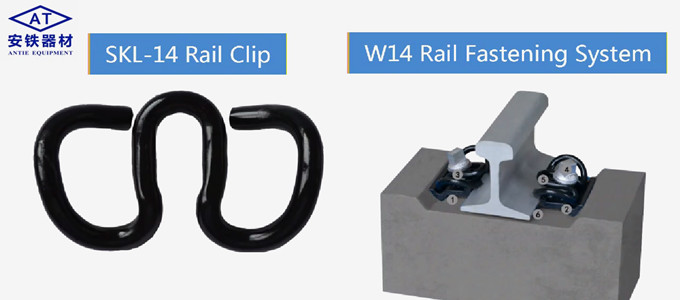

  • The W-shape of the Skl 14 provides safety. For meeting the required rail creep resistance two highly elastic, independently acting spring arms steadily hold the rail down; the middle bend acts as an additional tilting protection. With its high fatigue strength, it resists the dynamic vertical movements that are caused when the vehicle rolls over the rail. The system is maintenance-free: Due to the permanently acting tension, Skl and screw cannot loosen, the middle bend prevents the spring arms from plastic deformation.

Anyang Railway Equipment Co., Ltd(AT) is professional manufacturer and supplier of railway fastening systems, with clip I, clip II and clip III as our most popular products, we also offer other types spring clips like E-type clips, high speed railway clips, SKL rail clips, Russia rail clips, Fast Clips, Korea clips, Deenik clips, Nabla spring blade, etc.
Anyang Railway Equipment Co., Ltd(AT) has 8 automatic spring clips production lines and 2 manual spring clips production lines. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.
Anyang Railway Equipment Co., Ltd(AT) is able to 50 million pcs of spring clips per year for clients both at home and abroad.
