1. Raw material: 60Si2Mn
2. It is Hot Forged from Spring Steel Material Bar of 20 mm Dia.
3. Surface of Clip: It is free from burrs * rough surface and not injurious when Handling.
4. Standard: BS.
5. Weight of Clip: 0.767Kg / Pcs.
6. Finish: Plain, Oiled, Dacromet, Electrostatic Sprayed in place of Bituminous as China government has banned it due to high polluting factor.
7. Hardness: The average hardness is qualified within the range of HRC 42-47.
8. Dimension tolerance: ±1/32″.
9. Nominal Toe Load min 2750Lbs.
10. Working deflection: 7/16″.
11. The clamping force(when the deformation of the toe 7/16″) ≥2,950Lbs.
12. Fatigue test( the deformation of the toe from 7/16″ to 15/32″)≥5,000,000.
13. Fatigue Life: 3 - 5 Million Cycles without breaking.
14. ISO Certification: Quality Management System Certification.
15. Packing: In Woven Bags Then in Pallets
Anyang Railway Equipment Co., Ltd(AT) provides high quality

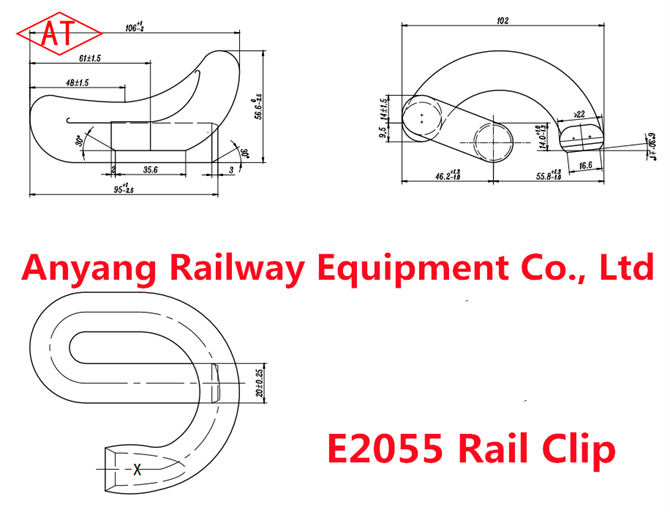

E2055 Rail Clips for Railway Rail Fastener System, AT offers a warranty for a period of 12 Months from date of acceptance & certification in Purchaser's country against defects arising as a result of poor workmanship inferior quality of materials used in the manufacture and or any other defects which are not originated as a result of incorrect handling or faulty operations by the Purchaser.
| Series |
Model |
Dia. |
Hardness |
| E rail clip |
III type rail clip |
ø18 |
44-48HRC |
| E1609 rail clip |
ø16 |
| E1809 rail clip |
ø20 |
| E1804 rail clip |
ø18 |
| E1806 rail clip |
ø18 |
| E1813 rail clip |
ø18 |
| E2001 rail clip |
ø20 |
| E2007 rail clip |
ø20 |
| E2009 rail clip |
ø20 |
| E2039 rail clip |
ø20 |
| E2055 rail clip |
ø20 |
| E2056 rail clip |
ø20 |
| E2063 Rail Clip |
ø20 |
| E2091 Rail Clip |
ø20 |
| Anyang Railway Equipment Co., Ltd can produce customized rail clips according to customers' drawings or samples! |
