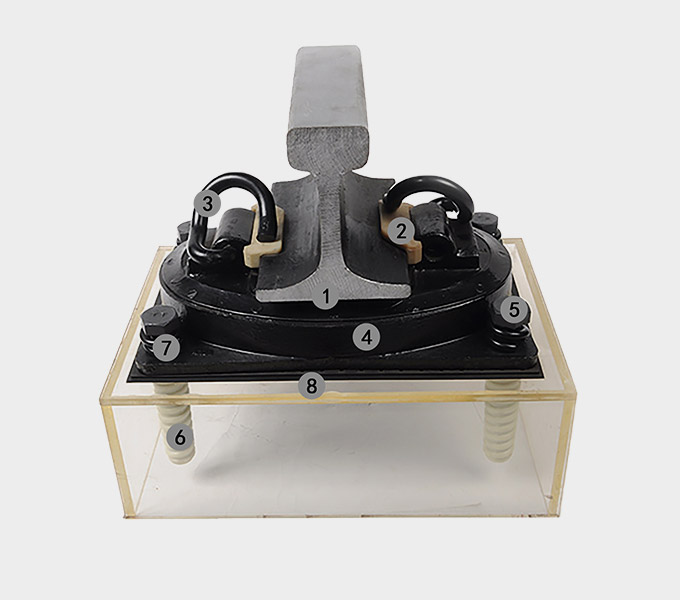

| COLOGNE EGG VIBRATION REDUCTION SYSTEM | |||||
| Item | Material | Quantity | |||
| III Type Rail Clip | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 | 2 |
| C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 | ||
| Rail Pad | EVA | 1 | |||
| Insulator | PA66+30%GF | 2 | |||
| Cologne Egg Vibration Reduction Baseplate | QT450-10 | 1 | |||
| Rail Bolt | Q235A | 4 | |||
| Dowel | HDPE | 4 | |||
| Spring Washer | 38Si7 | 4 | |||
| Intermediate Plate | EVA | 1 | |||
| Surface | Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating | ||||
| Standard | UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements | ||||
| Package | Moven bag, Box or other upon requirements | ||||
| Delivery | Depends on order | ||||
