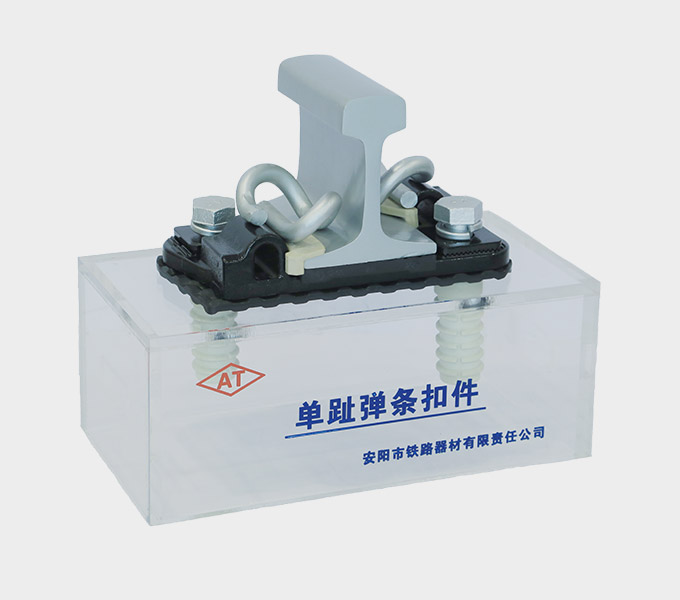

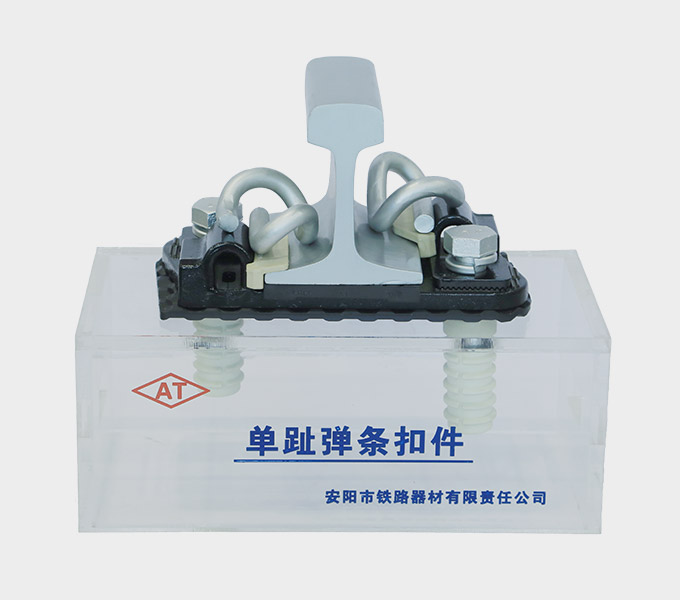

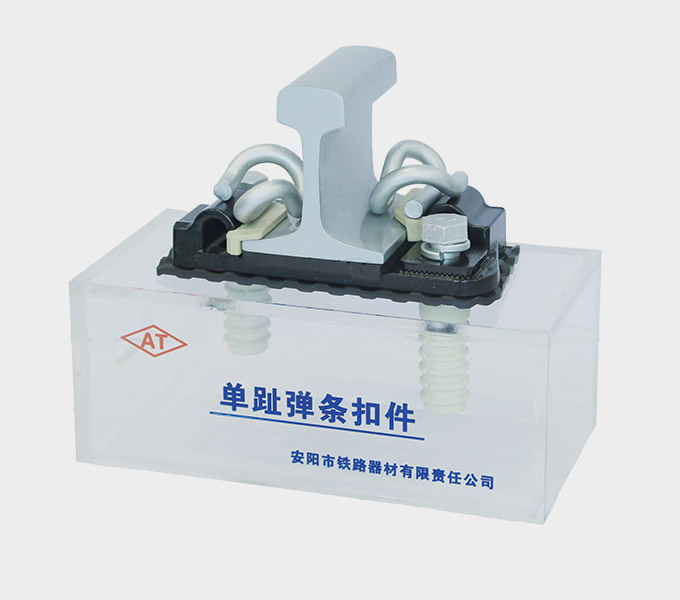

Single Resilient System (SRS) e-Clip fastening system

The Single Resilient System (SRS) e-Clip assembly is a bolt-free, shoulder-free elastic clip fastener. It uses aφ20mm single-toed PR spring clip as the buckling part. The buckling pressure is generated by the elastic deformation of the single-toed spring clip. The buckling pressure of the single-toed spring fastener is 13~15kN/group, the buckle pressure is stable and will not be affected by the loosening of other parts of the fastener, thereby improving the safety of subway operation.
The Single Resilient System (SRS) e-Clip assembly provide lateral distance adjustment through the occlusion between the gauge block and the iron backing plate. The fasteners have the functions of distance adjustment, shock absorption, noise reduction, insulation and spring stop, which are widely used in Guangzhou Metro.
Technical Support

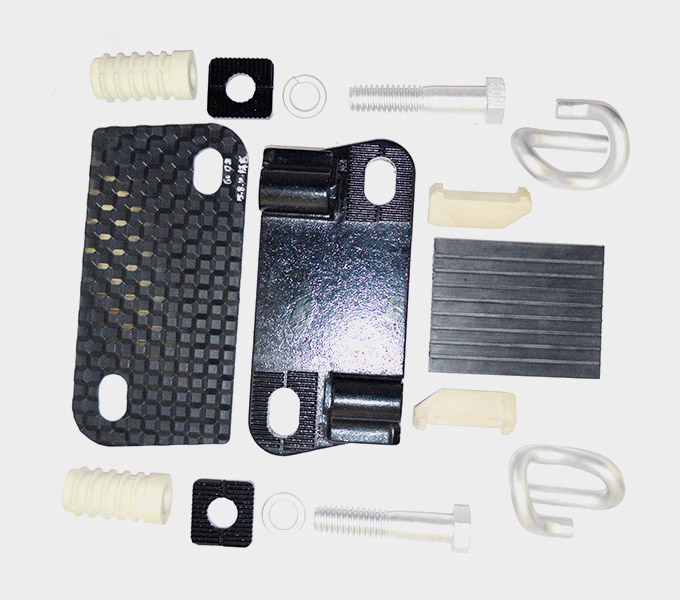

1. Single-toed Clip Fastening System Coponents List
Type Product Specification Unit Q'ty
Single Resilient System (SRS)
Single-toed Clip Fastening System
resilient pad under rail   Pcs 1
insulating gauge block   Pcs 2
rail clip III-type Pcs 2
anchor bolt   Pcs 2
flat washer 30   Pcs 2
heavy-duty spring washer 30   Pcs 2
gauge adjustable gusset   Pcs 2
tie plates   Pcs 1
resilient pad under  tie plate   Pcs 1
nylon dowel   Pcs 2
