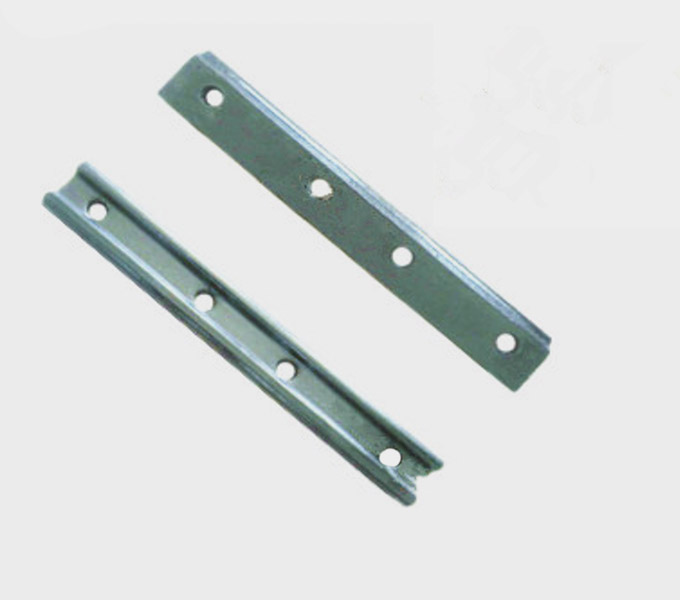

African Standard Railway Fishplate(Joint Bar)

Share:
Introduction
Railway Fishplate, also called rail fishplate, track joint bar, rail joint bar or splice bar, angle bar. It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
With over two decades of dedication and experience, Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fish plate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway Fish Plate, African standard railway fish plate, etc
Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of fish plates with round or oval holes, 4 holes 24'' or 6 holes 36'' such as 43-75kg common fish plates, 43-75kg insulated fish plates, bulged fishplates(Joggled fish plates), compromised fish plates, damper fishplate, variable Cross-Section Fish Plate and glued insulated fishplates, etc.
Anyang Railway Equipment Co., Ltd also can supply special rail joint, such as thermit Welded Joints.
Technical Support
Product African Standard Rail Fishplate(Joint Bar)
Standard According to Customer's requirements
Size 85 LB, 85 LB-80 LB
Raw Material Chinese steel grade 55#
C Mn Si S P
0.47-0.55 0.50-0.80 0.17-0.37 ≤0.035 ≤0.035
Surface Plain, Oxide Black, or other upon requirements
Package Pallet
Delivery Depends on order

Railway Rail Joint Splints (Track Joint Bars, Track Fish Plates) Manufacturer from China--Anyang Railway Equipment Co., Ltd
