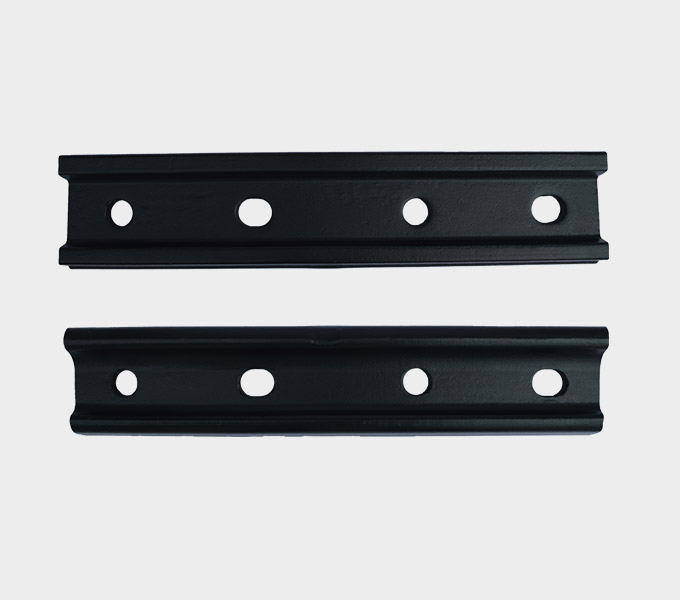

115-119RE Railway Fishplate - 4 Holes- 24″

Share:
Introduction
Railway Fishplate, also called rail fishplate, track joint bar, rail joint bar or splice bar, angle bar. It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
With over two decades of dedication and experience, Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fish plate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway Fish Plate, African standard railway fish plate, etc.
Anyang Railway Equipment Co., Ltd produces standard 100-8, 115-119RE, 132-136-141RE, 133RE Joint Bars, etc.
Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of fish plates with round or oval holes, 4 holes 24'' or 6 holes 36'' such as 43-75kg common fish plates, 43-75kg insulated fish plates, bulged fishplates(Joggled fish plates), compromised fish plates, damper fishplate, variable Cross-Section Fish Plate and glued insulated fishplates, etc.
Technical Support
Product AREMA Standard Rail Fishplate(Joint Bar)
Size 115RE, 119RE, 132RE, 136RE, 133RE ,141RE
Raw Material Chinese steel grade 55#
C Mn Si S P
0.35-0.60 ≤1.2 - ≤0.040 ≤0.050
Tensile strength Rm ≥690 MPa
Yield strength ReL / Rr0.2: ≥480 MPa
Elongation A ≥12%
Reduction of Area  Z ≥25%
Surface Plain, Painting or other upon requirements
Package Pallet
Delivery Depends on order

Standard Type Length/Diameter Weight(kg)
AREMA 2018 115RE 4 hole-24" 17.04Kg
115RE 6 hole-36" 25.56Kg
132-136RE 4 hole-24" 17.75Kg
132-136RE 6 hole-36" 26.63Kg

1. 115RE-119RE Rail Joint Bar and Assembly
115RE Rail Joint Bar and Assemly Manufacturer - Anyang Railway Equipment

2. 115RE-119RE Protect Rail Joint Bar and Assemly
115RE Protect Rail Joint Bar and Assemly Manufacturer - Anyang Railway Equipment

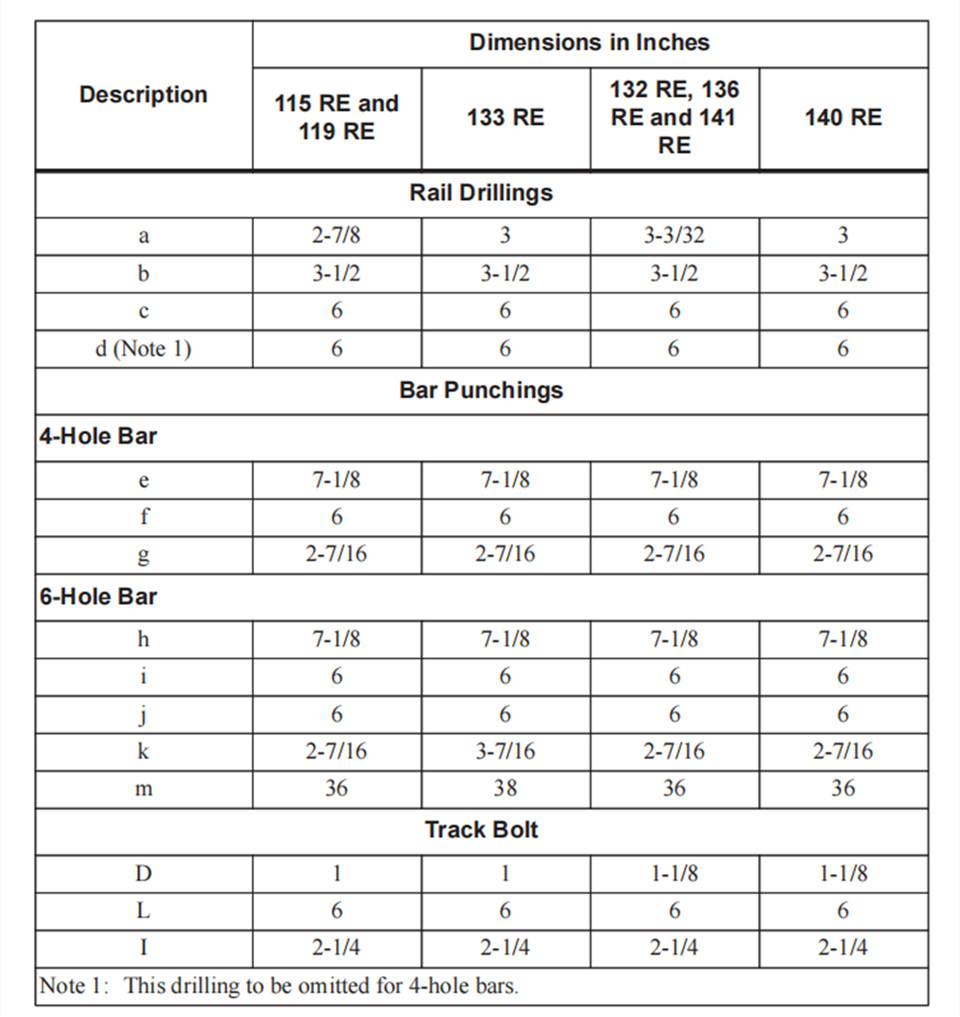

3. Recommended Rail Drillings, Bar Punchings and Track Bolts for  115 RE, 119 RE, 132 RE, 133 RE, 136 RE, 140 RE and 141 RE Rails and Joint Bars
Recommended Rail Drillings, Bar Punchings and Track Bolts for  115 RE, 119 RE, 132 RE, 133 RE, 136 RE, 140 RE and 141 RE Rails and Joint Bars

4. Recommended Rail Drillings, Bar Punchings and Track Bolts for  115 RE, 119 RE, 132 RE, 133 RE, 136 RE, 140 RE and 141 RE Rails and Joint Bars
Rail Drillings and Bar Punchings for 115 RE, 119 RE, and 133 RE, Utilizing 1 Inch Track Bolts
