UIC Standard Railway Fishplate(Joint Bar)

Share:
Introduction
Railway Fishplate, also called rail fishplate, track joint bar, rail joint bar or splice bar, angle bar. It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
With over two decades of dedication and experience, Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fish plate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway Fish Plate, African standard railway fish plate, etc

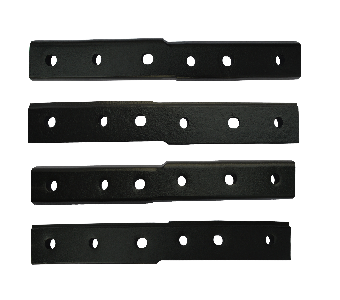

Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of fish plates with round or oval holes, 4 holes 24'' or 6 holes 36'' such as 43-75kg common fish plates, 43-75kg insulated fish plates, bulged fishplates(Joggled fish plates), compromised fish plates, damper fishplate, variable Cross-Section Fish Plate and glued insulated fishplates, etc.
Anyang Railway Equipment Co., Ltd also can supply special rail joint, such as thermit Welded Joints.
Technical Support

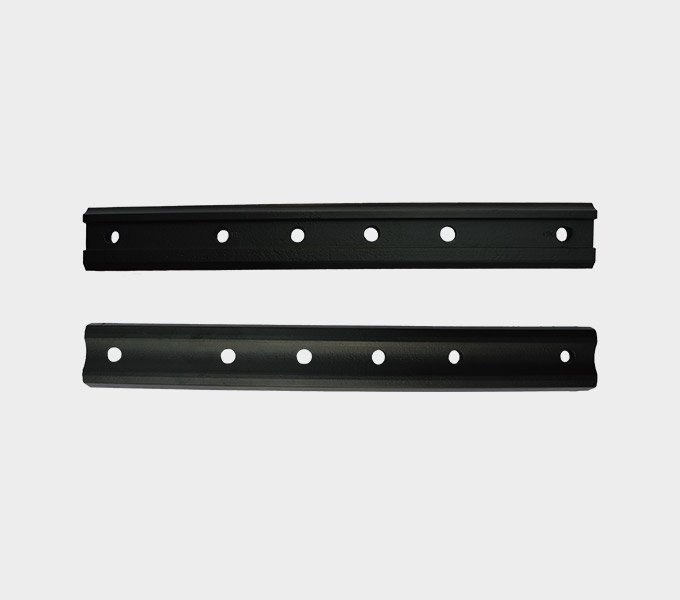

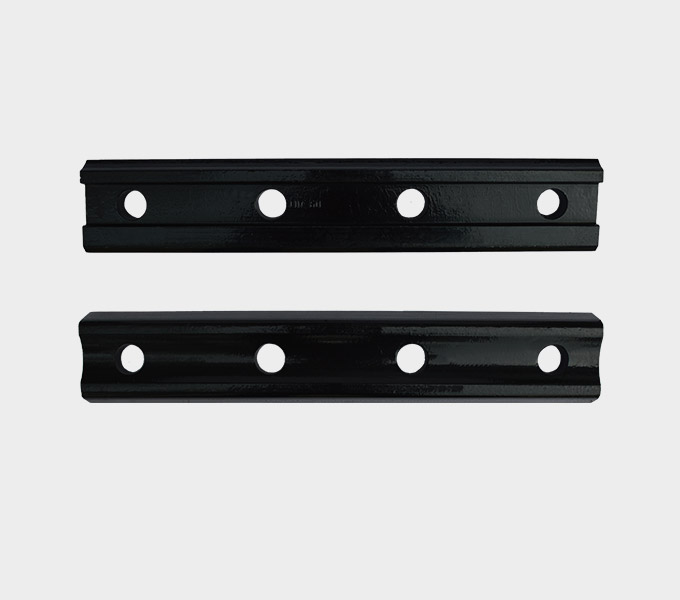

Product UIC Standard Rail Fishplate(Joint Bar)
Size U79 - UIC54, U85 - UIC60
Raw Material Chinese steel grade 40#
C Mn Si S P
0.37-0.44 0.50-0.80 0.17-0.37 ≤0.035 ≤0.035
Tensile strength Rm: 550-650 MPa
Elongation A ≥18%
Surface Plain, Oxide Black, or other upon requirements
Package Pallet
Delivery Depends on order

Standard Type Length/Diameter Weight(kg)
UIC864-4 & UIC864-8 UIC60 4 hole - 630/ ¢ 26 18.07kg
UIC60 4 hole-600/ ¢ 28 17.47kg
UIC60 4 hole - 630/ ¢ 25 18.1kg
UIC54 4hole 14.34kg
UIC54 6hole- 800 19.94kg

Railroad Track Joints(Rail Joint Bars, Rail FishPlates) Manufacturer from China--Anyang Railway Equipment Co., Ltd
