Introduction

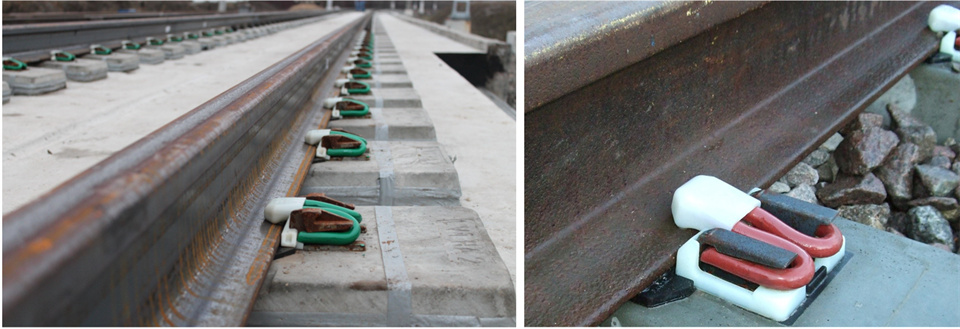

The Railway Fastclip system is suitable for use with all forms of pre-cast elements, including mono block, independent blocks and slab panel. Pre-cast elements may be cast-in or resiliently mounted.
The Fast clip system can be delivered to site fully pre-assembled (captive) on pre-cast concrete elements.

Technical Support

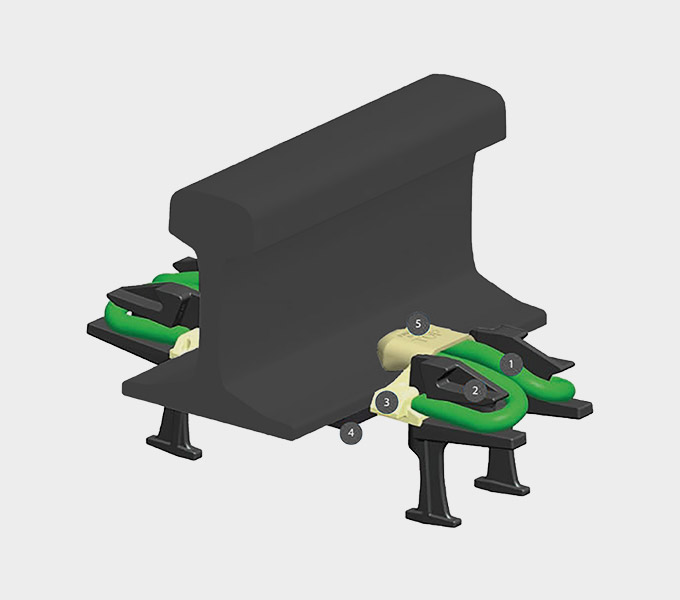

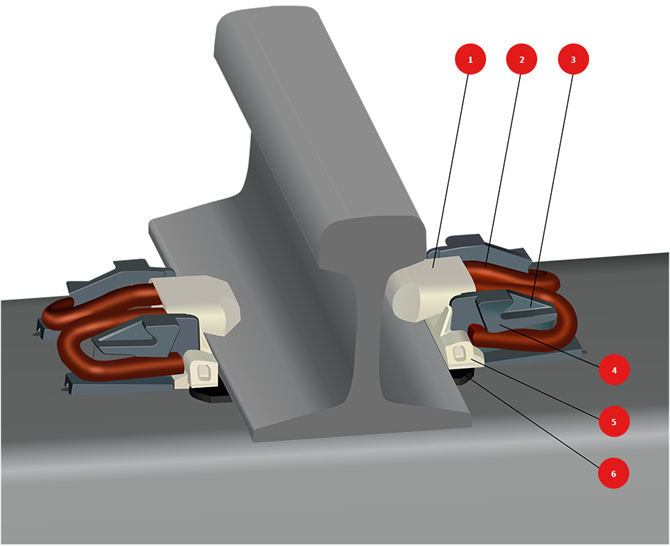

FASTCLIP FASTENING SYSTEM
Item	Material				Quantity
Fastclip	60Si2MnA	60Si2CrA	55Si2Mn	38Si7	2
	C:0.56-0.64, Mn:060-0.90, Si:1.50-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Rail Pad	EVA				1
Side-post Insulator	PA66+30%GF				2
Cast iron Shoulders	Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel				2
Toe Insulator	PA66+30%GF				2
Fatigue life	3-5 million cycles without breaking
Surface	Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements
Package	Moven bag, Box or other upon requirements
Delivery	Depends on order

Fastclip Fastener System for Railway Factory - Anyang Railway Equipment

Type I Railway Fastening System ( Type I Rail Fastener System)

Type I rail fastening system is suitable for 50kg/m and 60kg/m rails that fixed on concrete shoulders
