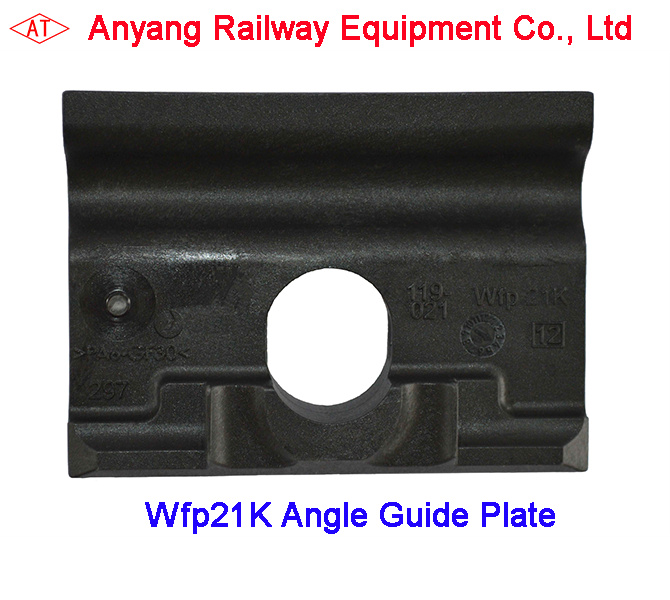

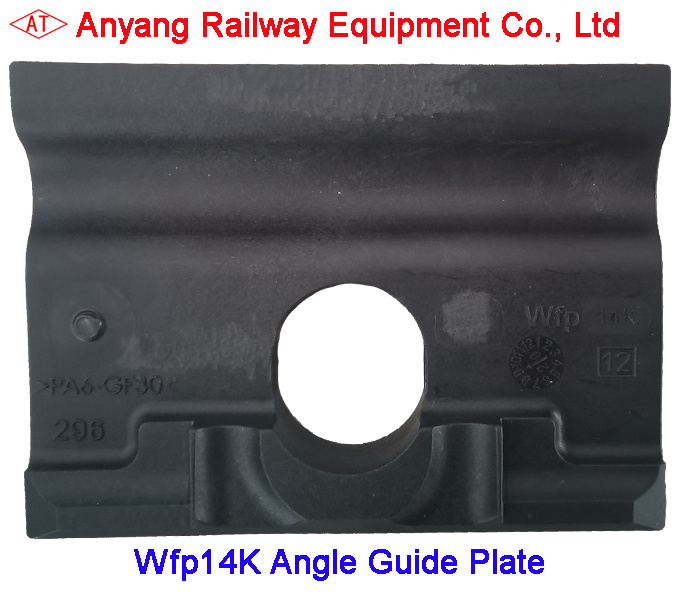

Wfp14k, Wfp15a, Wfp21K Angled Guide Plate

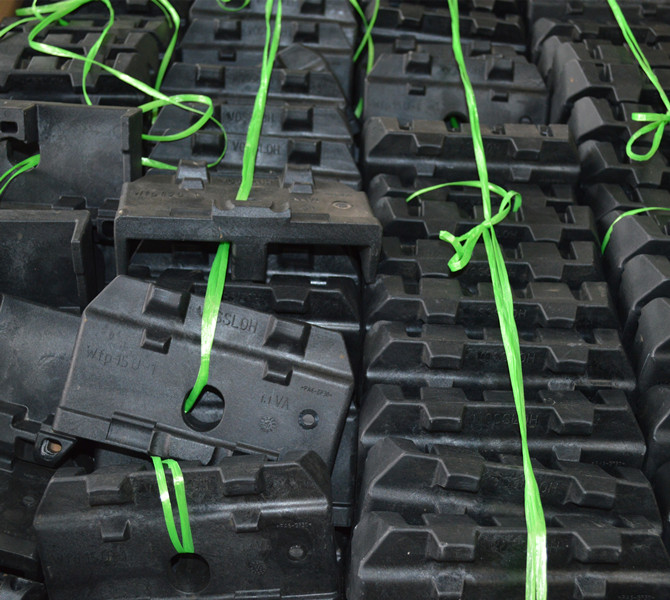

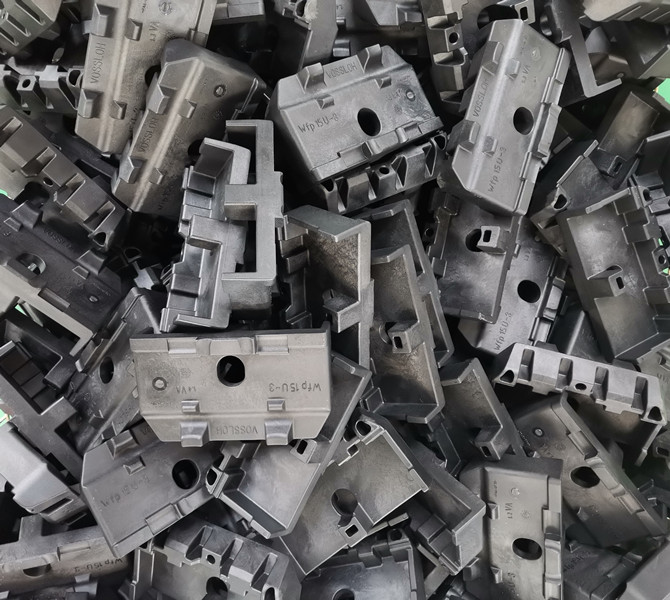

Anyang Railway Equipment Co., Ltd( AT) Produces Wfp15K, Wfp15u, Wfp15a, Wfp21K Angled Guide Plates for Railway Fastening System in modern injection production lines.
Technical Features

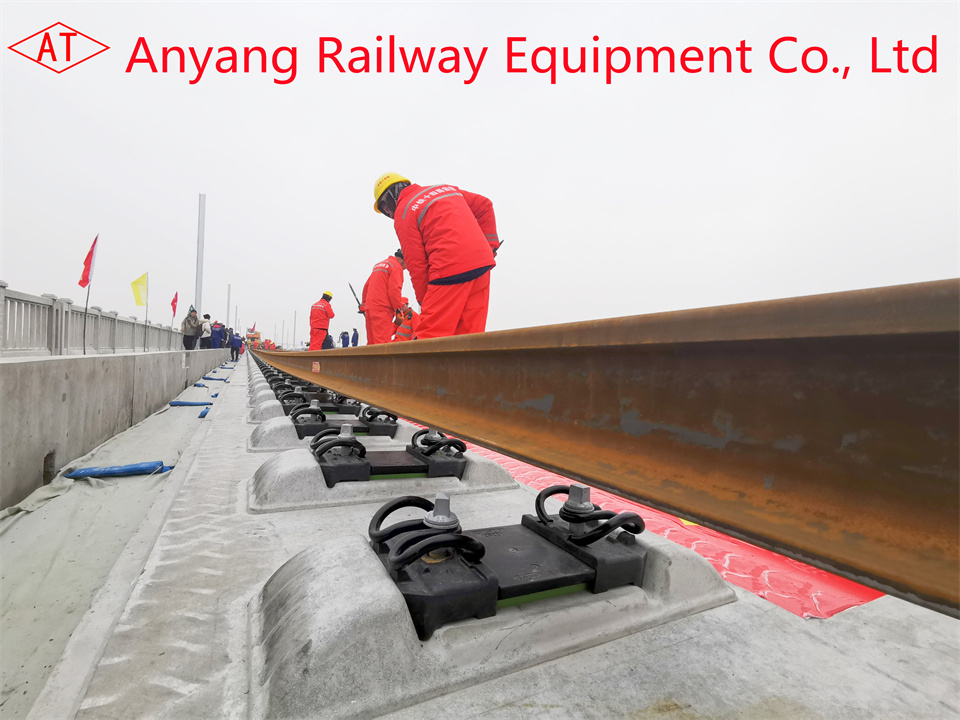

  • Angled guide plates keep the rail in the track, the angled guide plates lead the forces in-troduced into the rail by train in the base plate first and then into the concrete. In this way, the screw-dowel combinations are not loaded by shearing and bending forces. The design additionally supports the tilting protection. Different widths can regulate the gauge.
  • The raw material of the angled gauge plate is glass fiber reinforced polyamide 6 (PA6+GF30)with anti-ultraviolet and anti-oxidation functions, and its physical properties should meet the following table.
No. Item Unit Performance evaluation Test methods
1 Density g/cm3 1.30~1.42 ASTM D-792/ISO 1183
2 Melting point 255 ~ 270 ISO 3146
3 Tensile strength MPa ≥ 150 ISO 527-4
4 Bending strength MPa ≥ 200 ISO 178
5 Unnotched impact strength kJ/m2 ≥ 80 ISO 179
6 Volume resistivity Ω·cm ≥ 1013 IEC 60093
7 Glass fiber content % 30 ~ 35 ISO 3451

High-Speed Railway Guide Plates Supplier - Anyang Railway Equipment Co., Ltd

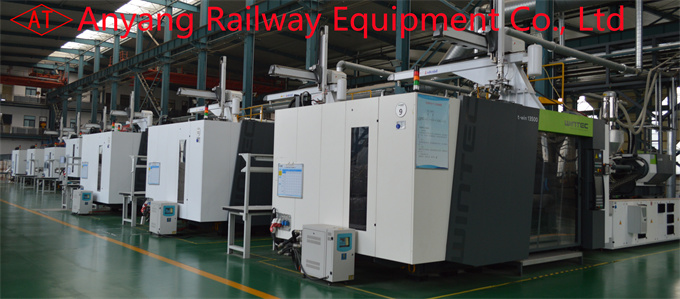

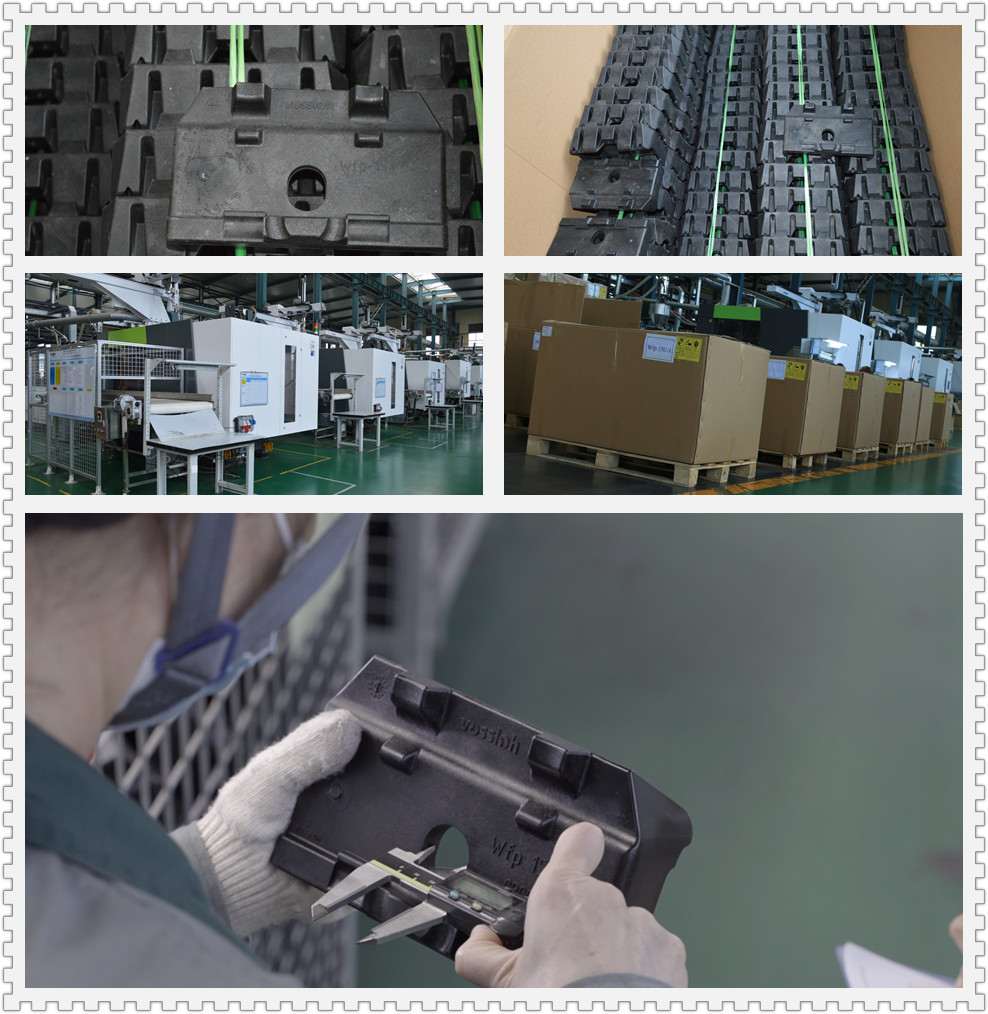

The injection workshop in Anyang Railway Equipment Co., Ltd has 16 sets of Engel injection machines (2 sets of 350T, 2 sets of 450T, 5 sets of 650T, 3 sets of 850T, 4 sets of 1350T) and 1 advanced automatic drying system, specializing in the production of railways, automobiles, home appliances, as well as other nylon parts, and plastic parts. At present, the production capacity of high-speed rail accessories is as follows: 90,000 Pcs/month for gauge baffles, 900,000 Pcs/month for nylon bushings, 450,000 Pcs/month for rail pads, 90,000 Pcs/month for height-adjusting pads, 1.2 million Pcs/month for  insulating pads, etc.Wfp14k, Wfp15a, Wfp21k Angled Guide Plates Manufacturer - Anyang Railway Equipment Co., Ltd
