CJ-2 Rail Fastening System for High Speed Railway

Share:

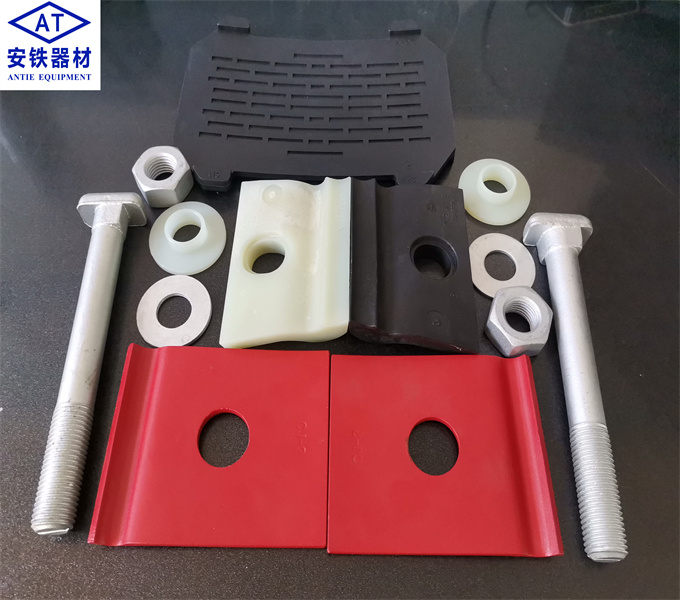

Introduction
1. T-Bot
2. Flat Washer
3.Nut
4.Spring Blade
5.Rail Pad

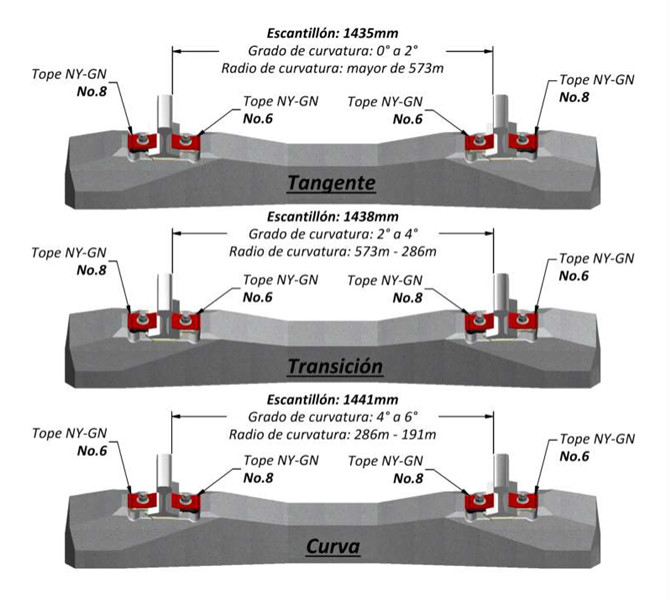

6.No.6 Guide Plate
7.No.8 Guide Plate
8.Insulating Washer
Technical Support
The CJ-2 fastening system is elastic, direct. It has been designed to replace the RN elastic fastening that has been used since the RS type concrete sleeper began to be used, in RENFE, and to improve the P-2 fastening currently used, whose conception is the same. As a replacement for the RN, it solves the problems presented by the track assembled with the set consisting of the RS sleeper and the RN fastening, especially with regard to the electrical insulation between its two threads and the conservation of its width. It fully resolves the first one, even in unfavorable weather conditions, and almost completely cancels the variation in track width caused by the RN clamping, although of course it cannot have the same effect on the width variation caused by the rotation of the heads of the sleepers, as a consequence of their seats and the lack of rigidity of the metal brace that joins them. As an improvement to the P-2 fastening, it prevents eventual contact of the metal plate with the plastic part by interposing support steps on the upper face of the part. In this way, the plate will not transmit all the vertical forces to the plastic part. It also presents greater resistance to lateral forces than the old P-2 fastening system.
Anyang Railway Equipment Co., Ltd(AT) is the manufacturer and supplier of CJ-2 fastening system for Railway in Mexico.

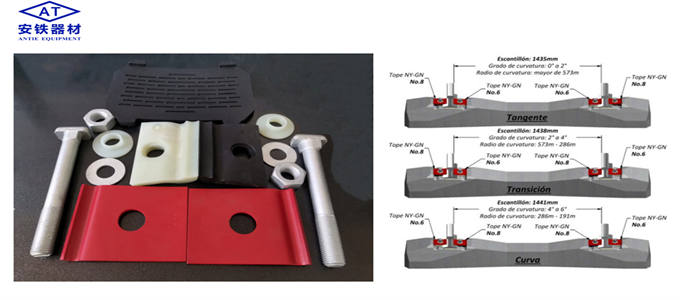

CJ-2 Spring Blade Fastening System( CJ-2 Fastener System)
Item Material QTY

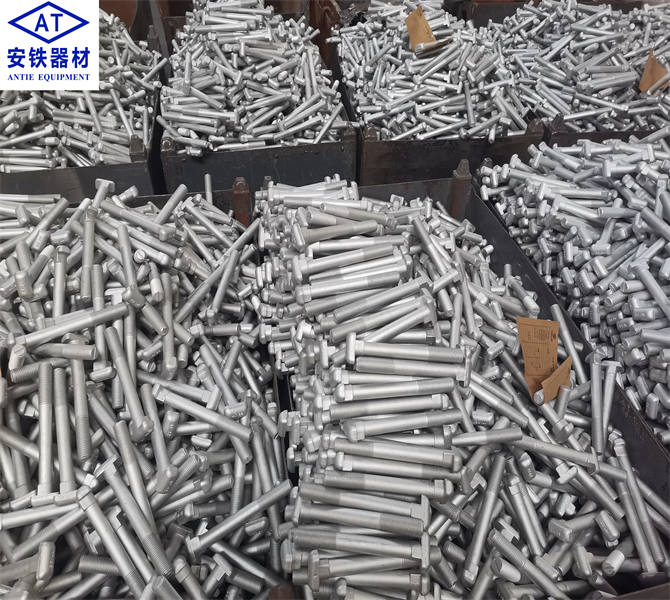

T- Bolt SAE1045/45# 2
Flat Washer ASTM A36 2
Nut ML08Al 2
Spring Blade AISI 5145 2
Rail Pad HDPE/TPEE 1
No.6 Guide Plate PA6-GF30 1
No.8 Guide Plate PA6-GF30 1
Insulating Washer PA6-GF30 2
Surface Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Standard UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR- EASC, GB/T or other upon requirements
Package Moven bag, Box or other upon requirements
Delivery Depends on order
