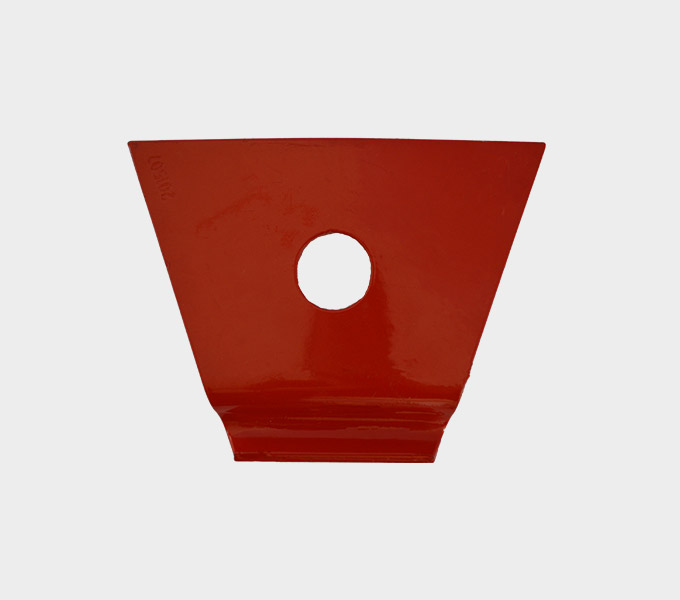

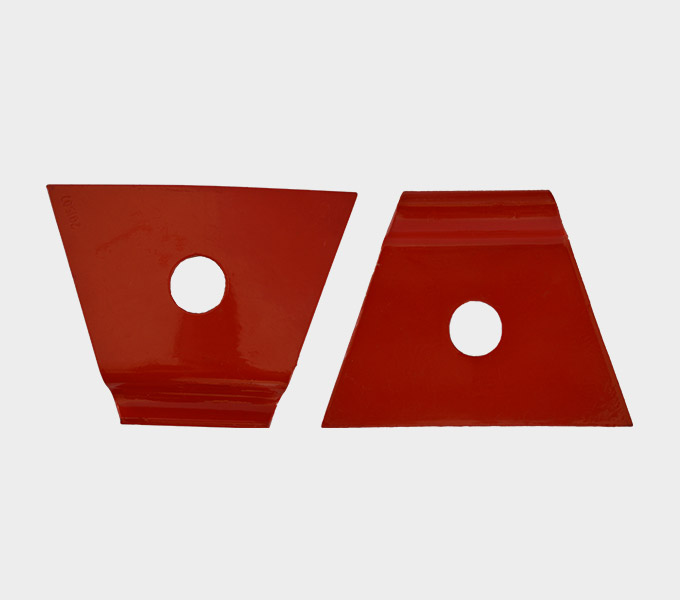

Nabla Spring Blade

Share:
Introduction
Nabla clip fastening system is widely used in Main Line, Tram, LRT, and High-Speed rails. Generally, the Nabla clip fastening system is a safe and reliable railroad fastening system and is widely used in Europe.
The shape of the Nabla blade generates a dynamically stable toe load on the steel rails when the rail nut is torqued. Anyang Railway Equipment Co., Ltd is a professional manufacturer of various railway track fasteners from China, Spring Blade, Nabla Clip suppliers/factory, wholesale high-quality products of Elastic Tension Nabla Clip R & D, and manufacturing, we have the perfect after-sales service and technical support.
Technical Support
Item Nabla Spring Blade
Material 60Si2MnA
Diameter(mm) φ12 φ14 φ16 φ18 φ20
Weight (Kg) 0.18 0.30 0.44 0.59 0.76
Toe Load (Kgf) 200~400 400~600 500~700 800~1000 1100~1400

Anyang Railway Equipment Co., Ltd is professional manufacturer and supplier of railway fastening systems, with clip I, clip II and clip III as our most popular products, we also offer other types spring clips like E-type clips, high speed railway clips, SKL rail clips, Russia rail clips, Fast Clips, Korea clips, Deenik clips, Nabla spring blade, etc.
Anyang Railway Equipment Co., Ltd has 6 automatic spring clips production lines and 2 manual spring clips production lines. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.
Anyang Railway Equipment Co., Ltd is able to 50 million pcs of spring clips per year for clients both at home and abroad.
