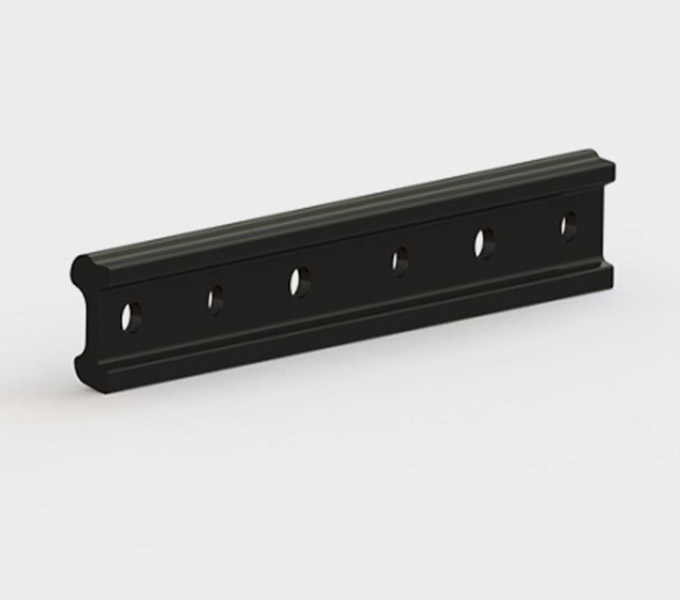

BS Standard Railway Fish Plate

Share:
Introduction
Railway Fish plate, also called rail fishplate, track joint bar, rail joint bar or splice bar, angle bar. It is a kind of metal bar bolted to the ends of two rails to join them together in a rail.
With over two decades of dedication and experience, Anyang Railway Equipment Co., Ltd is able to provide customers with all kinds of fishplates by different standards, such as Chinese standard railway fish plate, Arema standard railway fishplate, BS Standard Railway Fish Plate, DIN Standard Railway Fish Plate, South America Standard Railway Fish Plate, UIC Standard Railway Fish Plate, African standard railway fish plate, etc

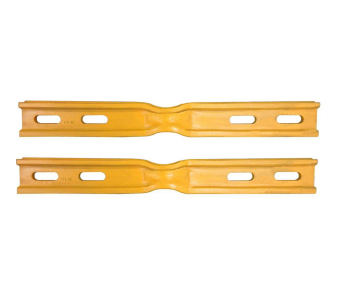

Anyang Railway Equipment Co., Ltd is a professional manufacturer and supplier to provide different kinds of fish plates with round or oval holes, 4 holes 24'' or 6 holes 36'' such as 43-75kg common fish plates, 43-75kg insulated fish plates, bulged fishplates(Joggled fish plates), compromised fish plates, damper fishplate, variable Cross-Section Fish Plate and glued insulated fishplates, etc.
Anyang Railway Equipment Co., Ltd also can supply special rail joint, such as thermit Welded Joints.
We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size, more than 100 kinds of ready-made mould are available.
Technical Support
Product BS Standard Rail Fish Plate(Joint Bar)
Size  BS75R, BS80A, BS90A, BS100A, BS113A
Raw Material Chinese steel grade 40#
C Mn Si S P
0.27-0.48 ≤0.94 0.38 ≤0.058 ≤0.058
Tensile strength Rm : 550-650 MPa
Elongation A ≥18%
Surface Plain, Oxide Black, or other upon requirements
Package Pallet
Delivery Depends on order

Standard Type Size Weight(kg)
BS 47-1 BS60A 4 hole 5.61Kg
BS75R 4 hole 6.56Kg
BS80A 4 hole 6.5Kg
BS90A 685.8/Φ26 13.23Kg
BS90A 792.9/Φ26.2 15.34Kg
BS100A 4 hole

Railroad Track Joints(Track Joint Bars, Rail FishPlates) Manufacturer from China--Anyang Railway Equipment Co., Ltd
