Rail Resilient Pads(Elastic Pads )for Railway Fastening System

Anyang Railway Equipment Co., Ltd(AT) has a modern production line to produce elastic rail pads(resilient pads) for railway rail fastener system, the highly resilient rail pad is protected from over-stress by means of a small nose in the front of the angled guide plate, which provides additional protection against rail tilting.
Technical Features

The high-speed railway rail fasteners optimize the elasticity of the railway track with the help of an elastomer rail pad. This also contributes to the protection of the trackbed.

The ballastless track of the high-speed railway replaces the gravel trackbed of the ballasted track with a concrete trackbed. The elasticity of the track structure is mainly provided by the resilient pad of the rail fastener system. The stiffness of the resilient pad has a certain influence on the bending stress of the rail, the pressure on the sleeper, the displacement of the rail, the expansion of the gauge, the driving comfort, and the driving resistance. As the train running time increases, the stiffness of the resilient pad will increase, but it will not affect the safety of train operation. However, the increase in the stiffness of the resilient pad will have an adverse effect on the track structure. The excessive stiffness of the elastic pad may even damage the underlying foundation. Therefore, the elastic pad of the ballastless track fastener needs to have a reasonable stiffness.

By the use of highly elastic rail pads, the fastening system is not only suitable for high-speed railway tracks but also for conventional tracks, they can be used in severe cold areas and non-severe cold areas.

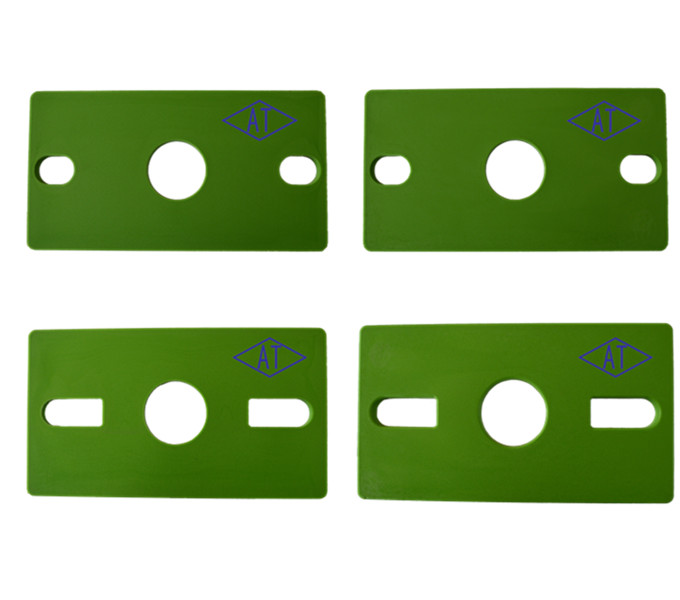

Railway Rail Elastic Pads Manufacturer - Anyang Railway Equipment Co., Ltd

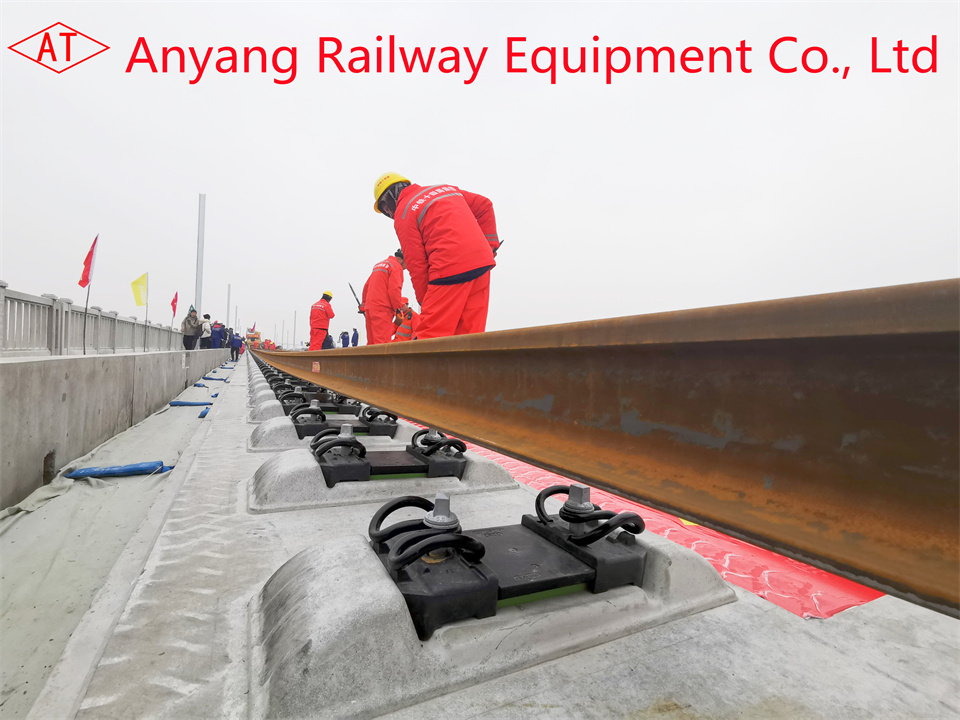

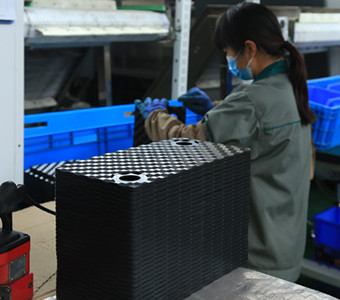

China Railway Elastic Pads Supplier - Anyang Railway Equipment Co., Ltd

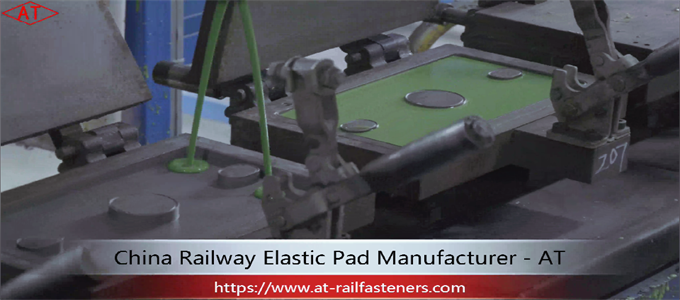

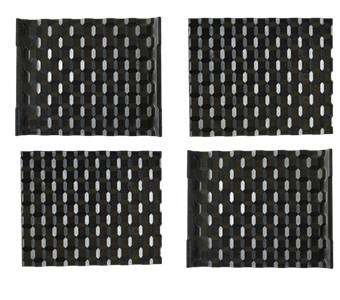

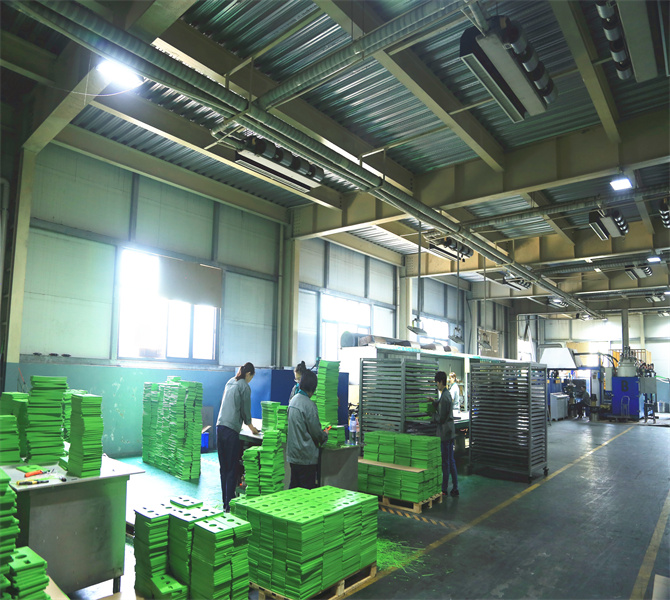

2 Elastic tie plate production lines mainly produce elastic tie plates under WJ-8 and W300-1 High-speed railway fastening systems, which have good vibration damping, excellent fatigue resistance, good low temperature and chemical corrosion resistance, as well as excellent aging performance. Elastic tie plates are widely used in high-speed railway, intercity railways, providing a good guarantee for the safety, stability and comfort of driving.

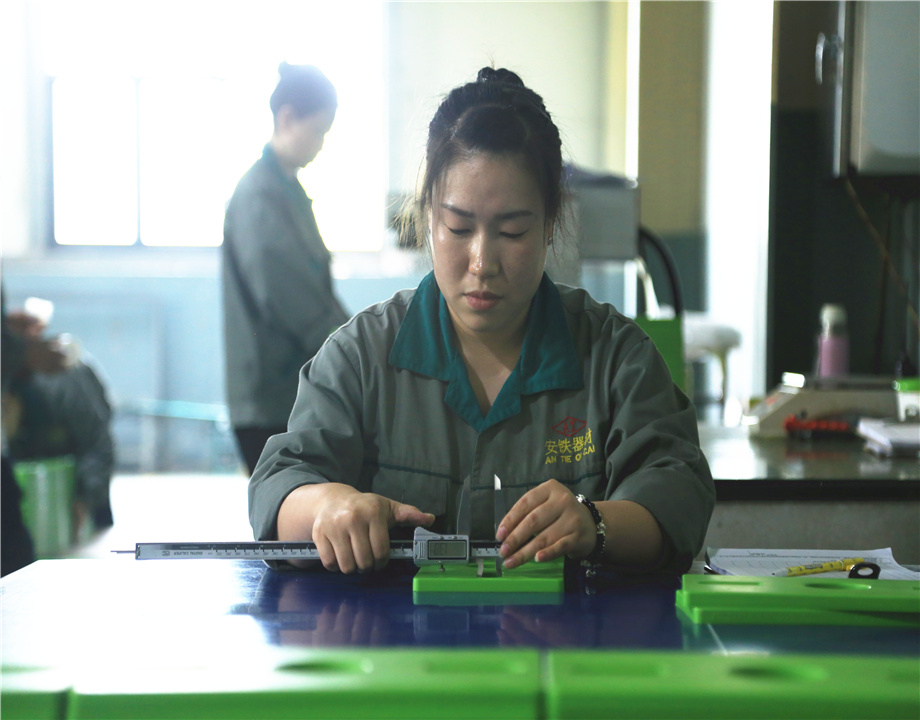

Anyang Railway Equipment Co., Ltd(AT) strictly controls every production process, it has a QC inspector check the dimensions, appearance, tensile strength (before and after aging), elongation at break (before and after aging), compression set, working resistance, oil resistance, cold resistance, static stiffness, dynamic and static stiffness ratio, fatigue performance, etc. Then Anyang Railway Equipment delivered 20pcs 20 randomly selected to China Railway Test & Certification Center Limited( CRCC) to test again, after strictly testing according to CRCC-00W-001:2018 and CRCC-13W-008:2012, CRCC issued Quality Certificate.
China Railway Rail Resilient Pad for Rail Fastener System, Rail Pads Manufacturer - Anyang Railway Equipment
