Height Adjustment Pads for Railway Rail Fastening System

Share:
Introduction
Anyang Railway Equipment Co., Ltd has modern production lines to produce HDPE, EVA Height Adjustment Pads under rail or under tie plate, Angled Guide Plate, as well as Fine Adjustment Pad Under Rail for W300-1 and WJ-8 High-Speed Railway Rail Fastening System in mass production
Technical Features
Main Products List
 Item Products Type Material Fastening System
1 Height Adjustment Pad Under Rail 0.5mm HDPE W300-1 High-Speed Railway Fastening System
2 Height Adjustment Pad Under Rail 1mm W300-1 High-Speed Railway Fastening System
3 Height Adjustment Pad Under Rail ZW692-2 EVA W300-1 High-Speed Railway Fastening System
4 Height Adjustment Pad Under Rail ZW692-3 W300-1 High-Speed Railway Fastening System
5 Height Adjustment Pad Under Rail ZW692-4 W300-1 High-Speed Railway Fastening System
6 Height Adjustment Pad Under Rail ZW692-5 W300-1 High-Speed Railway Fastening System
7 Height Adjustment Pad Under Rail ZW692-6 W300-1 High-Speed Railway Fastening System
8 Height Adjustment Pad Under Rail ZW692-7 W300-1 High-Speed Railway Fastening System
9 Height Adjustment Pad Under Rail ZW692-8 W300-1 High-Speed Railway Fastening System
10 Height Adjustment Pad Under Tie Plate AP20-6L HDPE W300-1 High-Speed Railway Fastening System
11 Height Adjustment Pad Under Tie Plate AP20-6R W300-1 High-Speed Railway Fastening System
12 Height Adjustment Pad Under Tie Plate AP20-10L W300-1 High-Speed Railway Fastening System
13 Height Adjustment Pad Under Tie Plate AP20-10R W300-1 High-Speed Railway Fastening System
14 Angled Guide Plate Wfp15a+0.5 PA6-30GF W300-1 High-Speed Railway Fastening System
15 Angled Guide Plate Wfp15a+1.5 W300-1 High-Speed Railway Fastening System
16 Angled Guide Plate Wfp15a-0.5 W300-1 High-Speed Railway Fastening System
17 Angled Guide Plate Wfp15a-1.5 W300-1 High-Speed Railway Fastening System
18 Fine Adjustment Pad Under Rail 0.5mm HDPE WJ-8 High-Speed Railway Fastening System
19 Fine Adjustment Pad Under Rail 1mm WJ-8 High-Speed Railway Fastening System
20 Fine Adjustment Pad Under Rail 2mm WJ-8 High-Speed Railway Fastening System
21 Fine Adjustment Pad Under Rail 3mm WJ-8 High-Speed Railway Fastening System
22 Fine Adjustment Pad Under Rail 5mm WJ-8 High-Speed Railway Fastening System
23 Fine Adjustment Pad Under Rail 8mm WJ-8 High-Speed Railway Fastening System
24 Height Adjustment Pad Under Tie Plate 10mm WJ-8 High-Speed Railway Fastening System
25 Height Adjustment Pad Under Tie Plate 20mm WJ-8 High-Speed Railway Fastening System

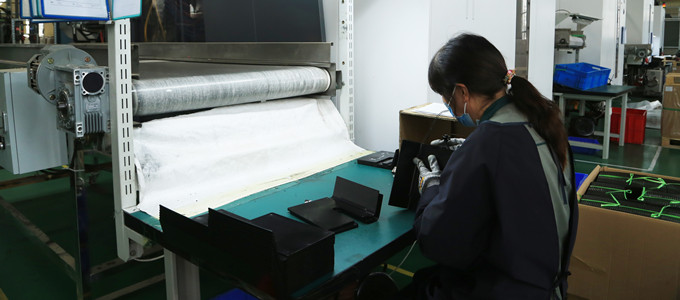

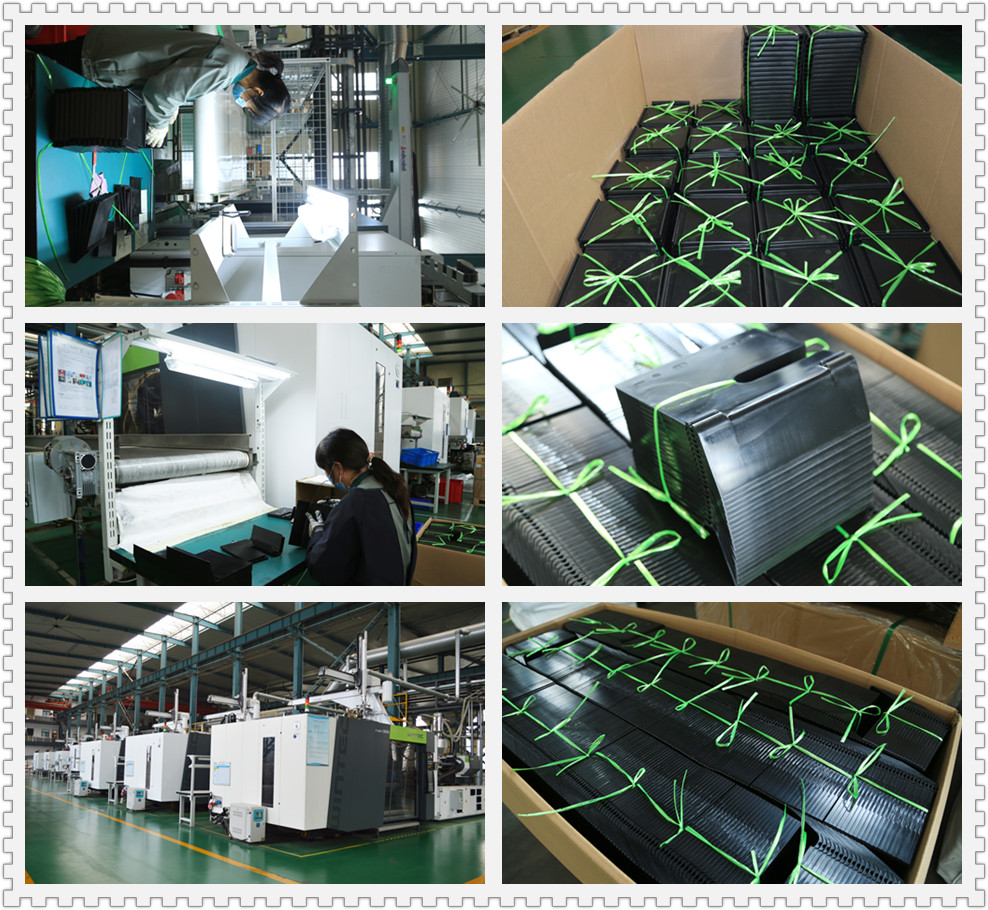

The injection workshop has 16 sets of Engel injection machines (2 sets of 350T, 2 sets of 450T, 5 sets of 650T, 3 sets of 850T, 4 sets of 1350T) and 1 advanced automatic drying system, specializing in the production of railways, automobiles, home appliances, as well as other nylon parts, and plastic parts. At present, the production capacity of high-speed rail accessories is as follows: 90,000 Pcs/month for gauge plates, 900,000 Pcs/month for nylon dowels, 450,000 Pcs/month for rail pads, 90,000 Pcs/month for height-adjusting pads, 1,200,000 Pcs/month for  insulating pads, etc.
China Railway Rail Height Adjustment Pads Manufacturer - Anyang Railway Equipment Co., Ltd
