Cast Tie Plates for WJ2 Railway Rail Fastening System

No.	Drawing No.	Name	Qty	Material	Weight or Volume
1	Research line 9705(08)-3	T-Bolt	2	45#	0.684kg
2	GB/T41	Nut M22	2	45#	0.224kg
3	TB/T1495.4-92	Flat washer 22	2	Q235-A	0.138kg
4	Research line 9705(08)-4b	Joint rail clip	2	60Si2MnA	1.18kg
5	Research line 1114-3a	Rail plate	1	thermoplastic polyester elastomer	272cm3
	Research line 1114-4b	Rubber plate		thermoplastic polyester elastomer and Polymer wear-resistant material	272cm3

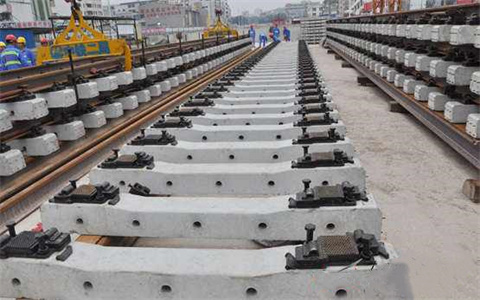

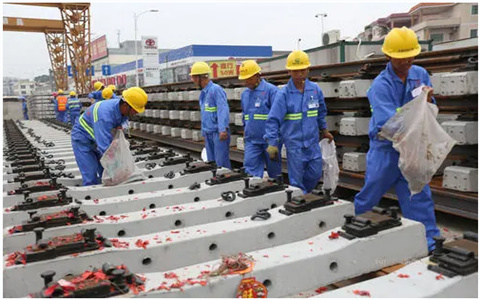

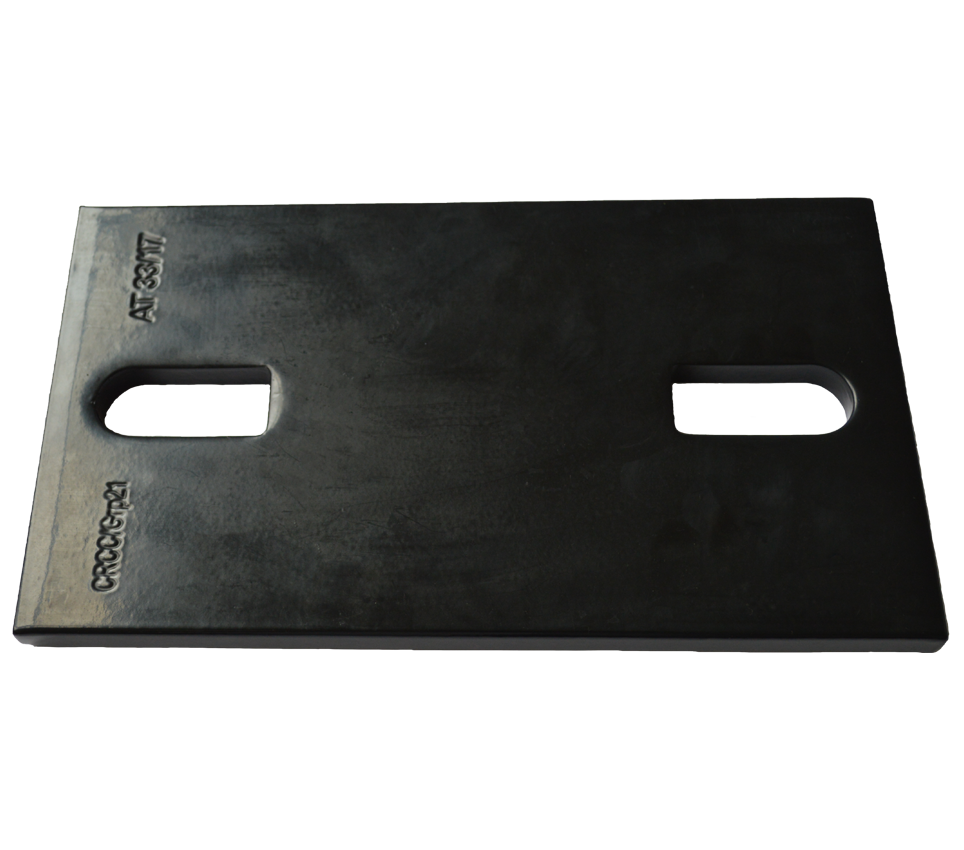

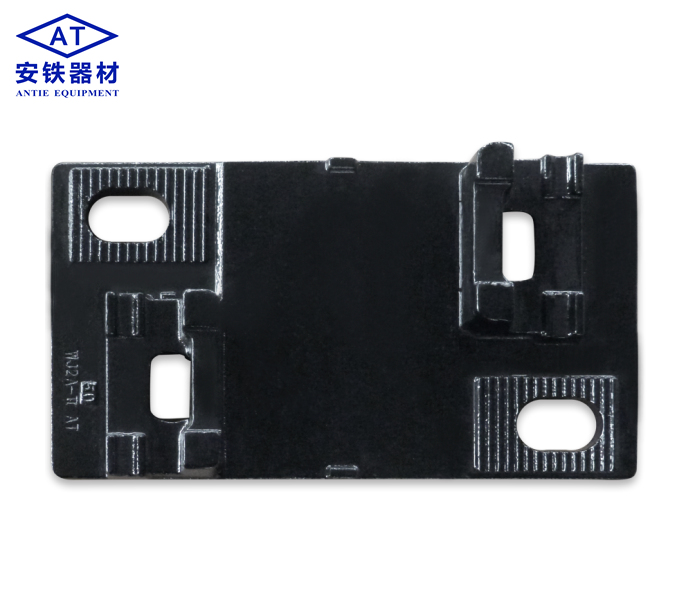

6	Research line 1114-3a	Type-I tie plate	1	QT450-10	11kg
	Research line 1114-4b	Type-II tie plate		QT450-10	11kg
7	Research line 9705(08)-11	Elastic pad	2	thermoplastic polyester elastomer	405cm3
8	Research line 1114-6	Insulator	2	Fiberglass Polyamide 66	93cm3
9	Research line 1114-7	Anchor bolt	2	45#	2.14kg
10	GB7244	Heavy-duty spring washer 30	2	65Mn	0.05kg
11	Research line 1114-5a	Type-I iron flat block	2	QT450-10	0.58kg
	Research line 1114-5b	Type-II iron flat block		QT450-10	0.50kg
12	Research line 1114-8	Plastic dowel	2	Fiberglass Polyamide 66	0.48kg
13	Research line 1114-10	Height-adjusting plate under rail	1	High-density polyethylene	25.4cm3/mm
14	Research line 1114-12	Height-adjusting plate under tie plate	1	High-density polyethylene	34.6cm3/mm

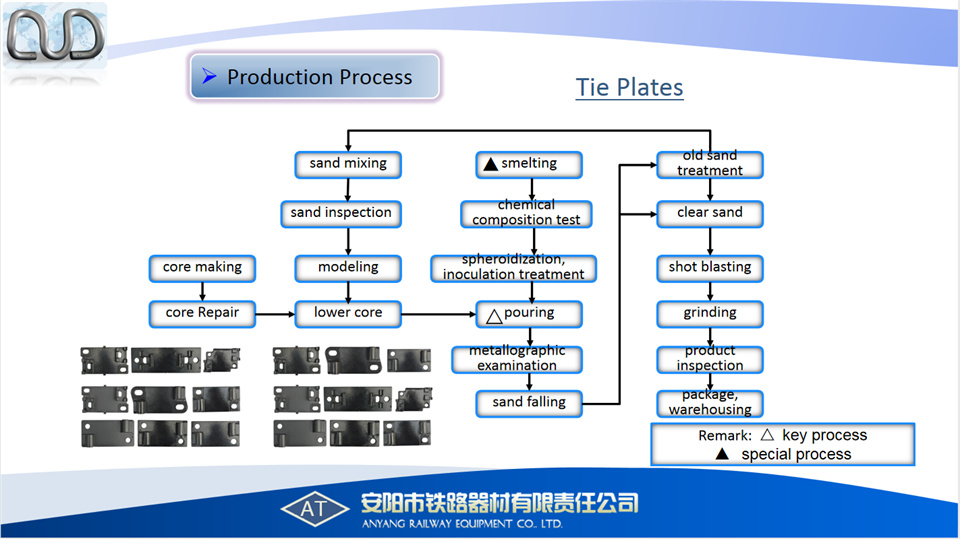

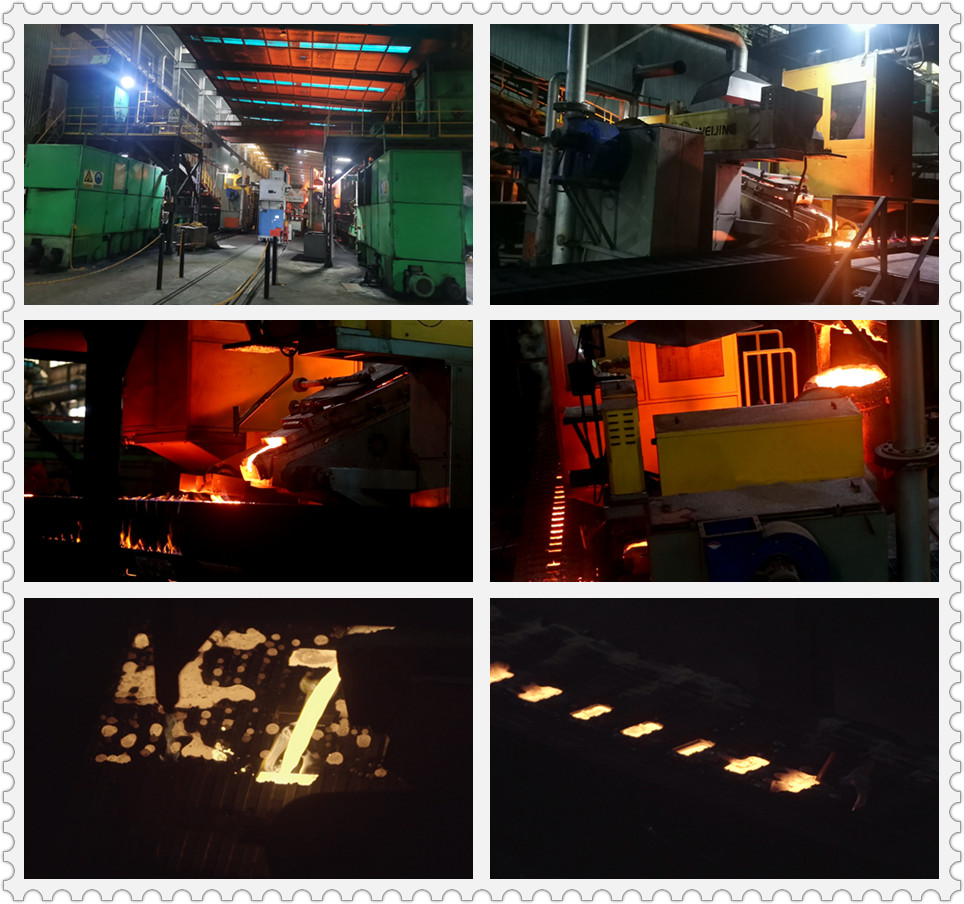

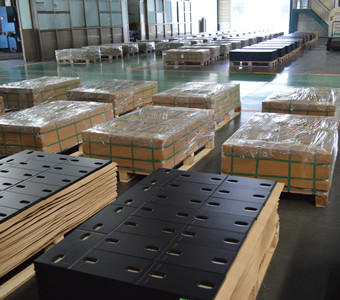

Anyang Railway Equipment Co., Ltd(AT) has 2 automatic casting production lines, which are composed of the sand casting process, and the mechanized automatic molding has high production efficiency. They are suitable for ductile iron and steel products such as tie plate, rail anchors, first aid device, rail clamps, etc for conventional railway, intercity railway, the maximum output is 100t/day.
