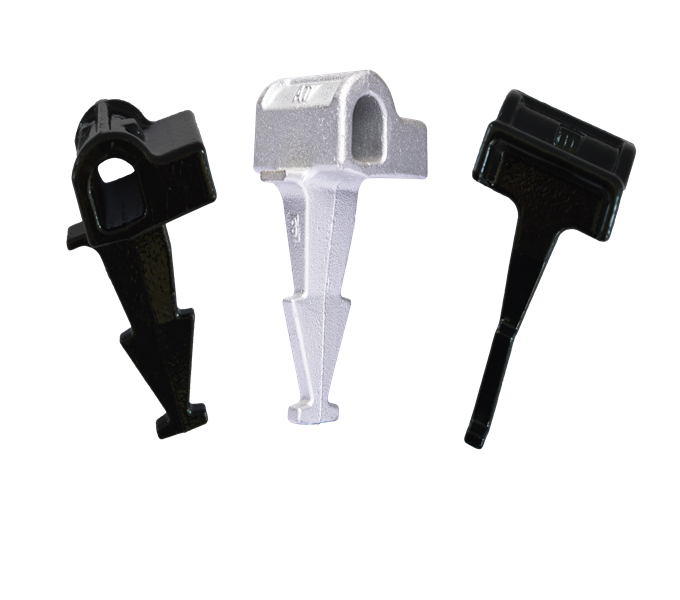

Rail Shoulder (Railway Cast-In Anchor)

Railway rail shoulder, also called rail iron shoulder, rail fastenings inserts, railroad shoulder insert, railway cast-in anchor, it is semi-embedded in the concrete rail ties to fix the elastic rail clips to the tie plates.
Anyang Railway Equipment Co., Ltd mainly provide different types Casting Rail Shoulders to meet customers’requirements.

Technical Support
1. Overview of railway embedded parts
Embedded parts are components that are pre-installed in a concealed project. They are components that are placed when the structure is poured, and are used for lap joints when building the superstructure. To facilitate the installation and fixation of the external engineering equipment foundation. Railway embedded parts are metal components that are pre-placed before concrete pouring, and are used to connect underground metal fittings such as bolts or spring clips and other ground fastening devices. Anyang Railway Equipment Co., Ltd.(AT) specializes in the production and sales of embedded parts used in various railway projects. At present, embedded parts products are widely used. Most of the embedded parts are made of metal, such as steel or cast iron, or wood, plastic, etc non-metallic rigid material.
2. Pre-embedded iron seat type elastic fasteners

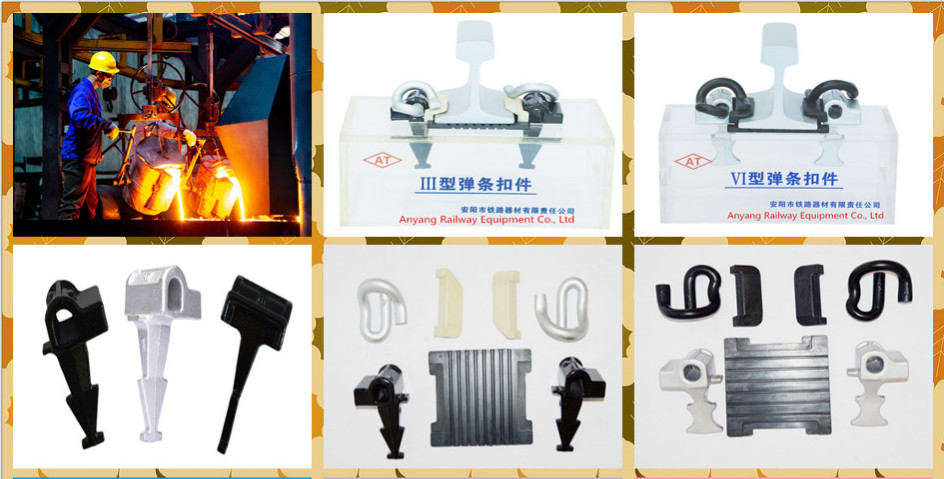

Elastic Fasteners with embedded cast-in shoulder mainly refers to elastic rail fastener systems or fastening systems. The pre-embedded cast-in shoulder is mainly a railway pre-embedded part in the sleeper before the concrete cement sleeper is formed, and it can be used to match the E-shaped spring clips or bolts to be installed later.
3. Production capability
Anyang Railway Equipment Co., Ltd(AT) has 2 automatic casting production lines, which are composed of the sand casting process, and the mechanized automatic molding has high production efficiency. They are suitable for ductile iron and steel products such as tie plate, rail anchors, first aid device, rail clamps, etc for conventional railway, intercity railway, the maximum output is 100t/day.

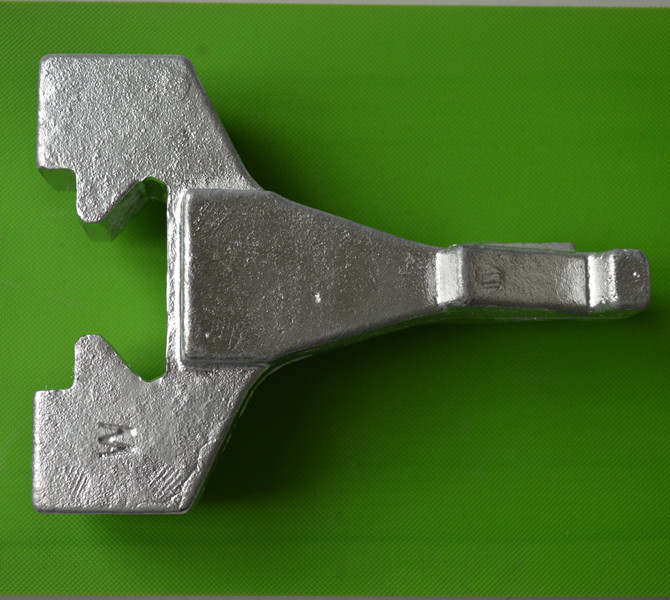

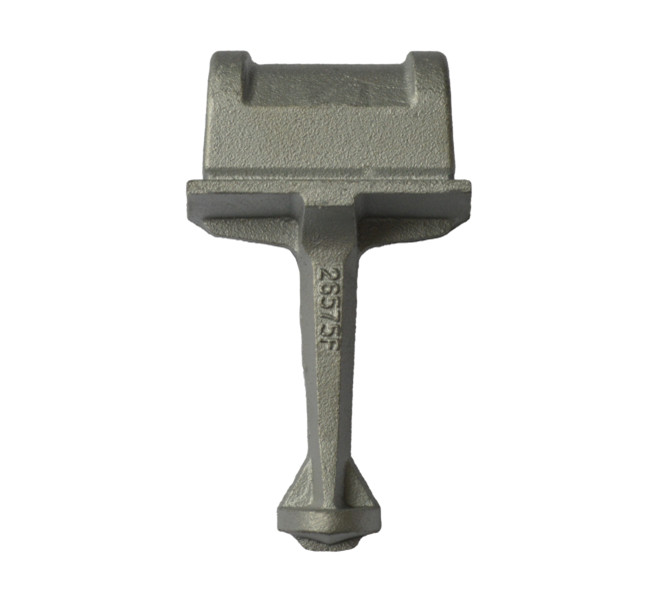

Railway Rail Anchors, Rail Clamps Manufacturer - Anyang Railway Equipment Co., Ltd

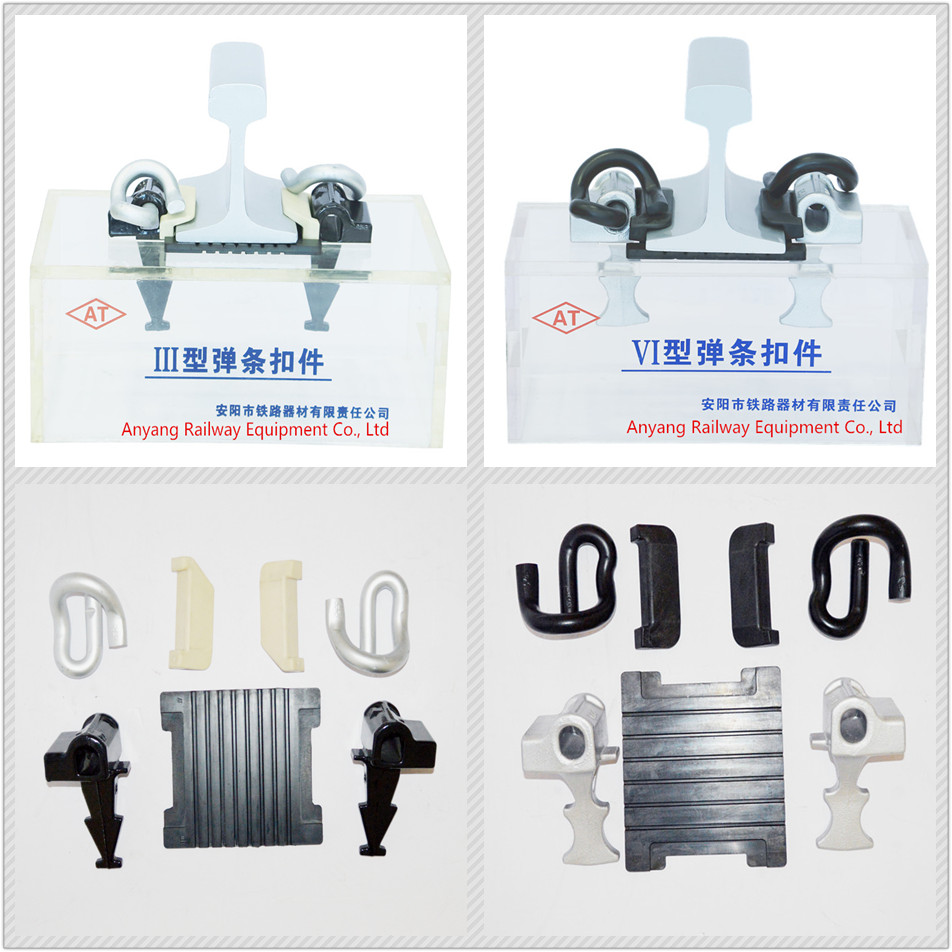

Rail Fastening System with Cast-In Shoulder Manufacturer--Anyang Railway Equipment Co., Ltd

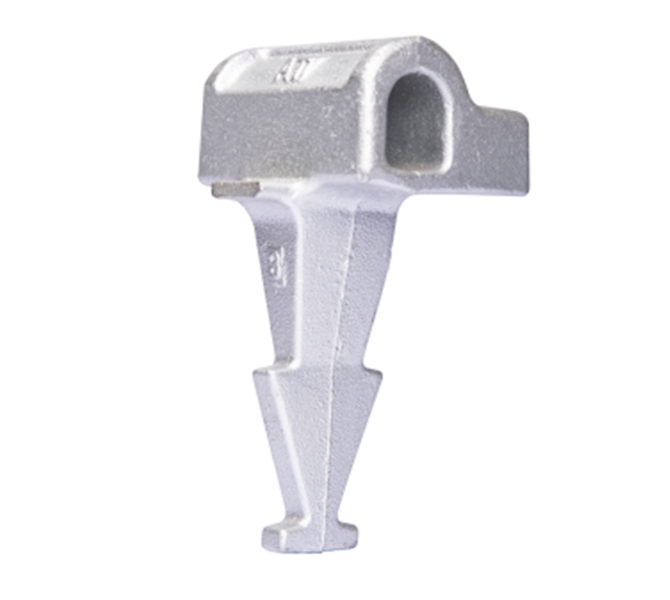

Product Rail Shoulders (Railway Cast-in Anchors)
Raw Material  QT450-10
Surface Plain, Dacromet, Painting or other upon requirements
Standards UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR- EASC, GB/T or other upon requirements
Weight Depend on different models
Dimension Depend on different models
Package Moven bag, Box or other upon requirements
Delivery Depends on order
