How to Control the Quality of Railway Rail Fixing Materials
Jul 02, 2021
Anyang Railway Equipment Co., Ltd's strategy is firmly focused on quality, efficiency, reliability and competitiveness of products and services provided to our domestic and foreign clients in the area of CONVENTIONAL RAIL, HIGH-SPEED RAIL, URBAN TRANSPORT. In accordance with the principles of Total Quality Management, based on full control of total production cycles and traceability of products during all production processes, Anyang Railway Equipment Co., Ltd is involved in the process of continuous improvement of all stakeholders in the value chain, from suppliers of raw materials to the end-users, making Anyang Railway Equipment Co., Ltd a reputable player on the global market.

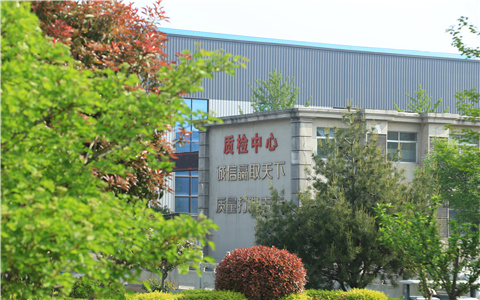

Quality Control Center & Team

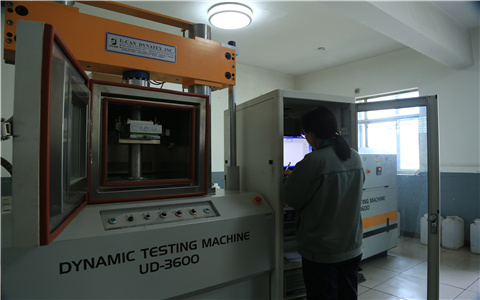

Dynamic Testing Machine

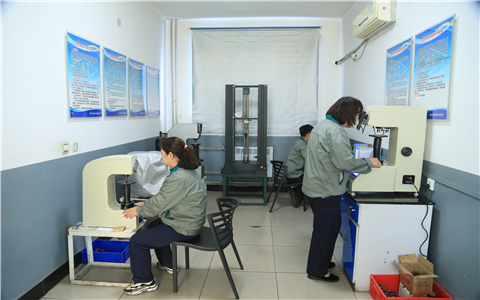

Metallographic Analysis Laboratory

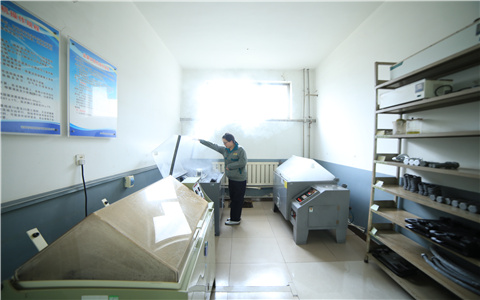

Anti-corrosion laboratory

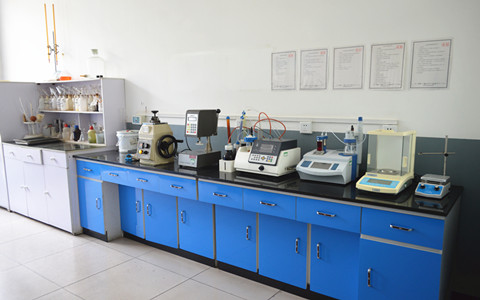

Chemical Analysis Laboratory

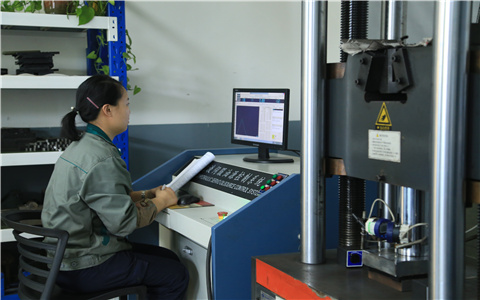

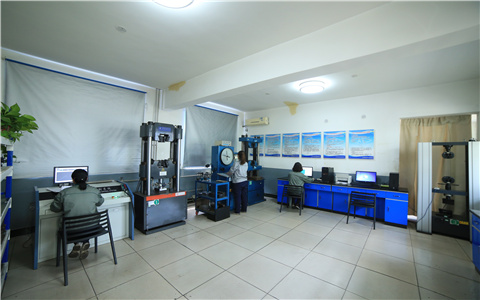

Fatigue Laboratory
.jpg)

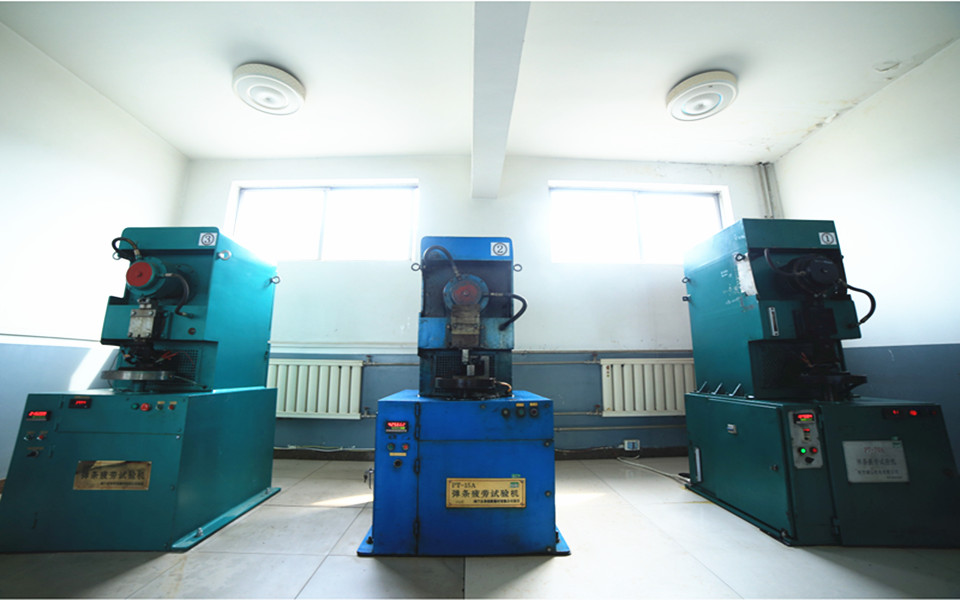

Spring Clip Fatigue Testing Room
.jpg)
Hardness and Buckle Pressure Testing Room
.jpg)

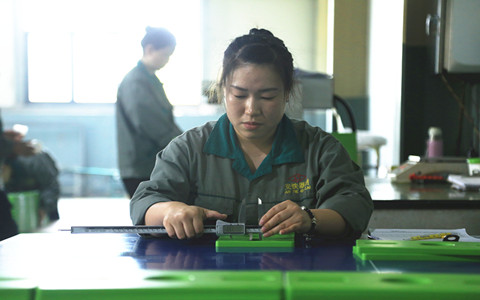

Workshop Quality Control--Elastic Rail Pad

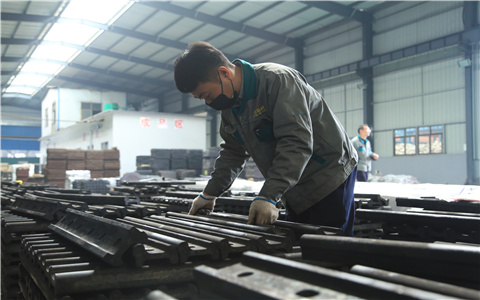

Workshop Quality Control--Rail Joint Bar
.jpg)

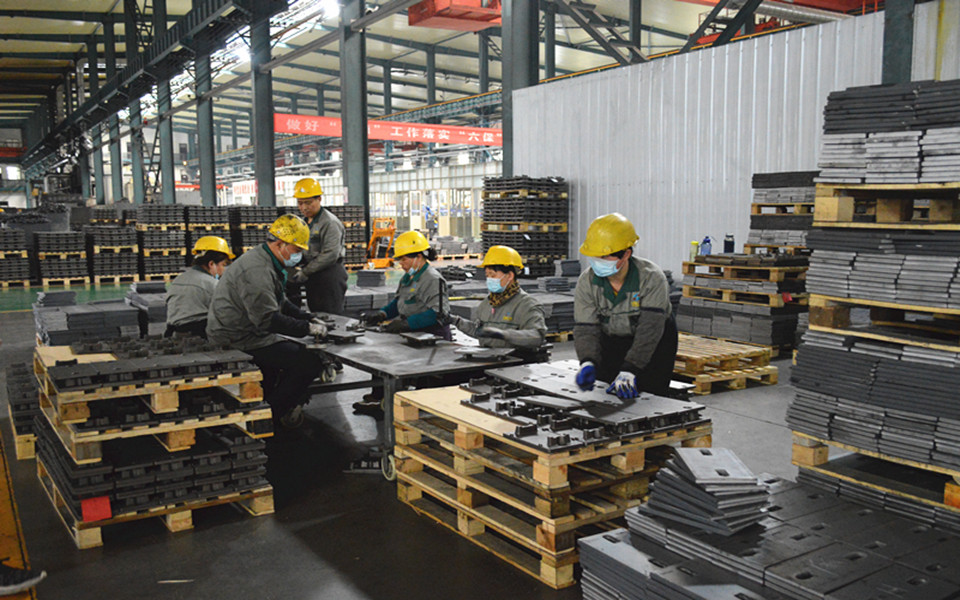

Workshop Quality Control--Rail Tie Plates
.jpg)
Quality Inspection Tools and Equipments
| No. | Item | Specification | Quantity | Precision | Inspection Contents |
| 30 | Rockwell Hardness Tester | HR-150A | 1 | 0.1HRC | Hardness |
| 31 | Brinell Hardness Tester | HB-3000 | 1 | 0.1HBW | Brinell Hardness |
| 32 | Digital Rockwell Hardness Tester | HRS-150 | 1 | 0.1HB | Brinell Hardness |
| 33 | Carbon and Sulfur Analyzer | TX-CS3D-5 | 1 | 1 grade | C, S Content |
| 34 | Electric Arc Furnace | TX-DL | 1 | 1 grade | Heating |
| 35 | Element Analyzer | TX-GD4 | 1 | 1 grade | Si.MnA.GA.P Content |
| 36 | Fluorescent Magnetic Particle Flaw Detector | GLK-2000 | 1 | 1 grade | Flaw Detection |
| 37 | Flaw Detector | CTS-22 | 1 | 1 grade | Flaw Detection |
| 38 | Type III Elastic Clip Buckle Force Mold | H09-050 | 1 | 1 grade | Buckle Force |
| 39 | Special measuring mold for Subway Spring Clips | 1 | 1 | 1 grade | Dimensions |
| 40 | Special Measuring Mold for Type III Elastic Clip | Tailor-Made | 1 | 1 grade | Dimensions |
| 41 | Elastic Arch Height Feeler Gauge | Type A, Type B and Type II Spring Clip | 1 | 1 grade | Size Measurement |
| 42 | Bucle Force for Type I and Type I Spring Clip | Type I and Type I Spring Clip | 1 | 1 grade | Buckle Pressure |
| 43 | Type I type II Residual Deformation | Type I and Type I Spring Clip | 1 | 1 grade | Residual Deformation of Spring clips |
| 44 | Electronic Balance | JY1003 | 1 | 1mg | Weight |
| 45 | Pressure Thermometer | WTQ-280 | 2 | 0.1℃ | Temperature |
| 46 | Microcomputer Control Computer Universal Testing Machine | WDW-100KN | 1 | 1 grade | Mechanical properties, displacement, deformation |
| 47 | Metallographic Sample Grinding and Polishing Machine | MP-2 | 1 | 1 grade | Polished |
| 48 | Portable Smelting Thermometer | W330-S | 3 | 0.1℃ | Temperature |
| 49 | Sand Surface Hardness Tester | SYS-B | 1 | 50g | Hardness |
| 50 | Double Disc Infrared Dryer | SGH | 1 | 275W | Sand Drying |
| 51 | Sand Washing Machine | SXW | 1 | 600ml | Sand Washing |
| 52 | Direct Reading Air Permeability Tester | STZ | 1 | 50 | Molding Sand |
| 53 | Hammer Type Prototype Machine | SAC | 1 | 1kg | Molding Sand |
| 54 | Hydraulic Strength Testing Machine | SWY | 1 | 1.2mpa | Molding Sand |
| 55 | Blue Absorption Test Machine | SEL | 1 | 1％ | Molding Sand |
| 56 | Metallographic Microscope | MR2000 | 1 | 1 grade | Metallographic |
| 57 | Spectrometer | Labspark750 | 1 | 1 grade | Element content |
| 58 | Electro-hydraulic Servo Universal Testing Machine | FR-1001B-600 | 1 | 1 grade | Mechanical Properties, Bending, Buckle Force |
| 59 | Megohmmeter | ZC25B-3 | 1 | 500Ω | Resistance measurement |
| 60 | Electronic Balance | FA1004B | 1 | 0.1㎎ | Weight |
| 61 | Electronic Balance | GH-120D | 1 | 1㎎ | Weight |
| 62 | Shelf Balance | JPT-2 | 1 | 1g | Weight |
| 63 | High Insulation Resistance Measuring Instrument | CZ46A | 1 | 1 grade | Resistance measurement |
| 64 | Aging Test Box | 401-A | 2 | 0.1℃ | Rubber Aging |
| 65 | Servo Universal Material Testing Machine | FR-103 | 1 | 1 grade | Rubber Stretch |
| 66 | Shore Rubber Hardness Tester | LX-A | 1 | 1 grade | Rubber Hardness |
| 67 | Digital Display Thickness Gauge | JZ-6002 | 1 | 0-10 | Thickness Measurement |
| 68 | Akron Abrasion Machine | WML-76 | 1 | 26.7N | Rubber Processing |
| 69 | Double Head Grinding Machine | MPS-3 | 1 | 20mm | Rubber Processing |
| 70 | Electronic Tensile Testing Machine | UT-2080 | 1 | 1 grade | Stretch |
| 71 | Aging Test Machine | UT-2071A | 3 | 0.1℃ | Rubber Aging |
| 72 | High Resistance Meter | PC68 | 1 | 1 grade | Resistance measurement |
| 73 | High Resistance Meter | CZ36 | 1 | 1 grade | Resistance measurement |
| 74 | Rotational Viscometer | CAP2000+L | 1 | 1 grade | Measurement |
| 75 | Automatic Moisture Analyzer | V100 | 1 | 1 grade | Measurement |
| 76 | Automatic Potentiometric Titrator | ZDJ-4B | 1 | 1 grade | Measurement |
| 77 | Electronic Analytical Balance | FA2204B | 1 | 0.1mg | Weight |
| 78 | Dynamic Testing Machine | UT-3600 | 1 | 1 grade | Dynamic and Static Stiffness of Elastic Pad |
| 79 | Fatigue Testing Machine | UT-3800 | 1 | 1 grade | Elastic Pad Fatigue |
| 80 | High and Low Temperature Alternating Test Chamber | M/GDW-81L | 1 | 0.1℃ | Temperature |
| 81 | Salt Spray Test Machine | FR-1202 | 2 | 0.1℃ | Anti-corrosion Test |
| 82 | Salt Spray Test Machine | YWX/Q-250 | 1 | 0.1℃ | Anti-corrosion Test |
| 83 | SO2 Test Chamber | SO2-600 | 1 | 0.1℃ | Anti-corrosion Test |
| 83 | Coating Thickness Gauge | TT260 | 2 | 1 grade | Thickness |
| 84 | Paint film impact tester | QCJ-100 | 1 | 1 grade | Paint film |
| 85 | Paint Film Cylindrical Bending Tester | QTY-32 | 1 | 1 grade | Paint film |
| 86 | Crossbar | QFH-A600 | 1 | 1 grade | Paint film |
| 87 | Semi-automatic Impact Testing Machine | JB-300B | 1 | 1 grade | Impact toughness |
| 88 | Impact Test Cryostat | CDW-40 | 1 | 1 grade | Temperature |
