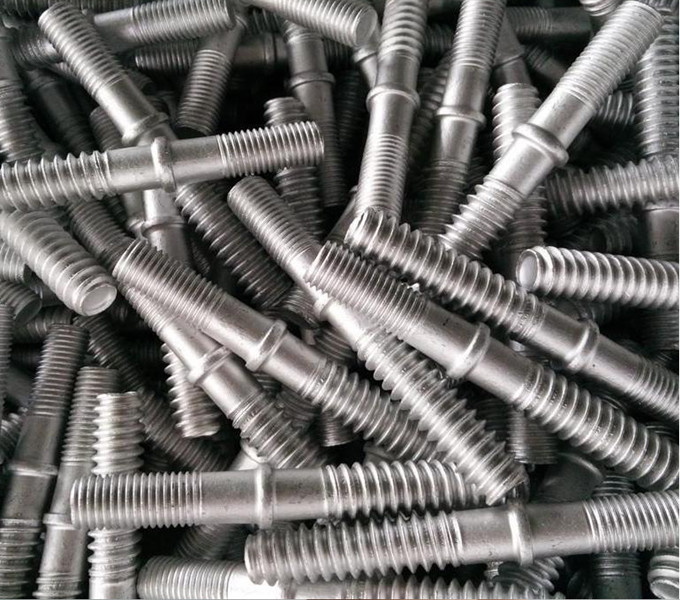

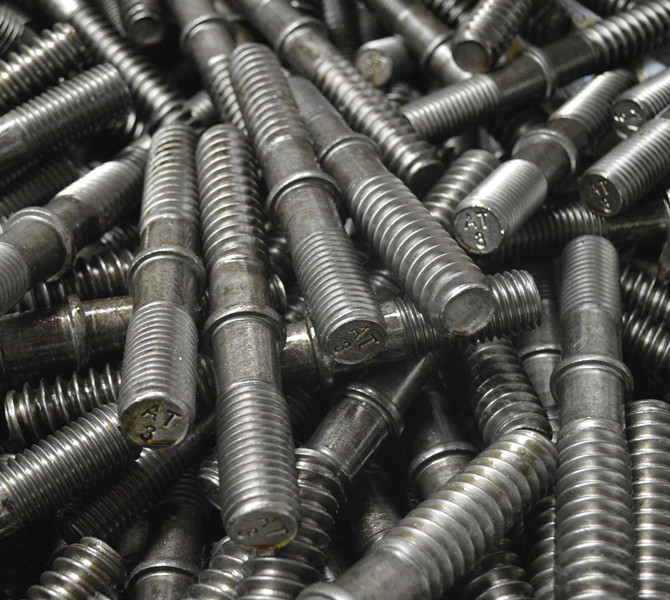

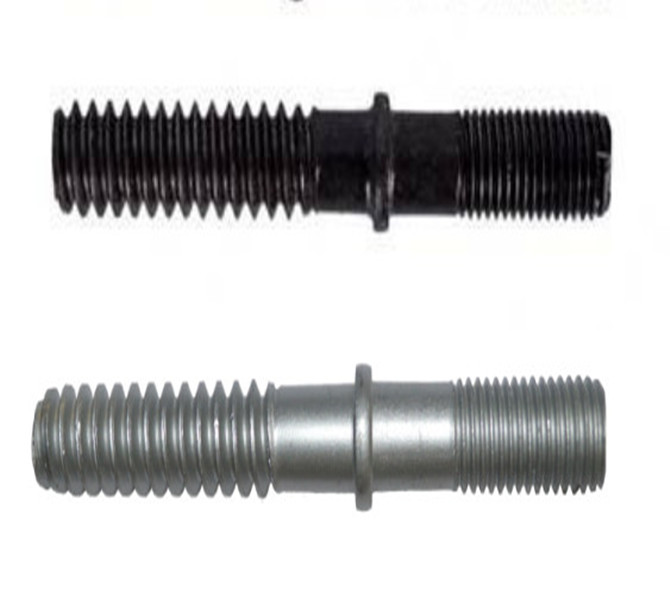

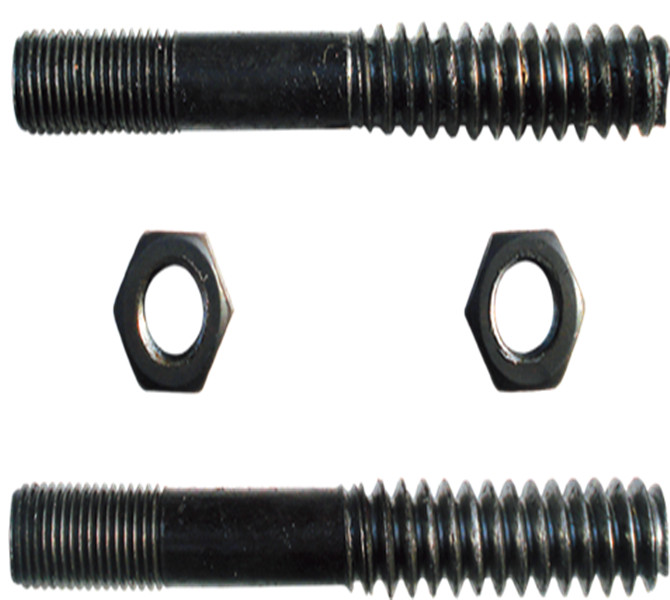

Double Head Screw Spike(Anchor Bolt)

24*195 screw spikes are used for Type I, II, railway fastening systems with rail clips, carried out standard TB/T564.
Anchor bolts in the railway construction are used to fix the track fastening systems with other rail fasteners to fix the steel rails, the anchor bolts are inserted into the concrete base to hold the rail in place, and the top portion of the anchor bolt is embedded in the concrete base.

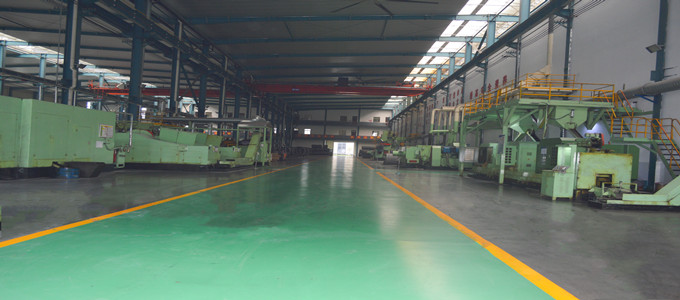

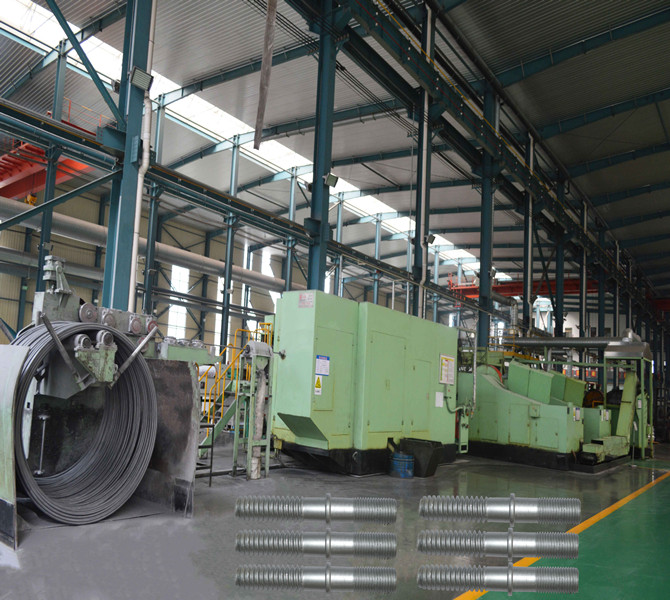

Screw spike production line in Anyang Railway Equipment Co., Ltd is composed of automatic multi-station cold upsetting machine and thread rolling machine, the maximum output is 20 million Pcs/year.
Technical Support
Product Double Head Screw Spike(Anchor Bolts)
Raw Material Alloy Steel 40Cr, 42CrMo, 35CrMo, Steel Q235, C35, C45
Grade 4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9
Surface Plain, Oxide Black, Dacromet, or other upon requirements
Standards UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR- EASC, GB/T or other upon requirements
Weight Depend on different models
Dimension Depend on different models
Package Moven bag, Box or other upon requirements
Delivery Depends on order
