Railway Sleeper Screw Spikes from China Manufacturer

Introduction

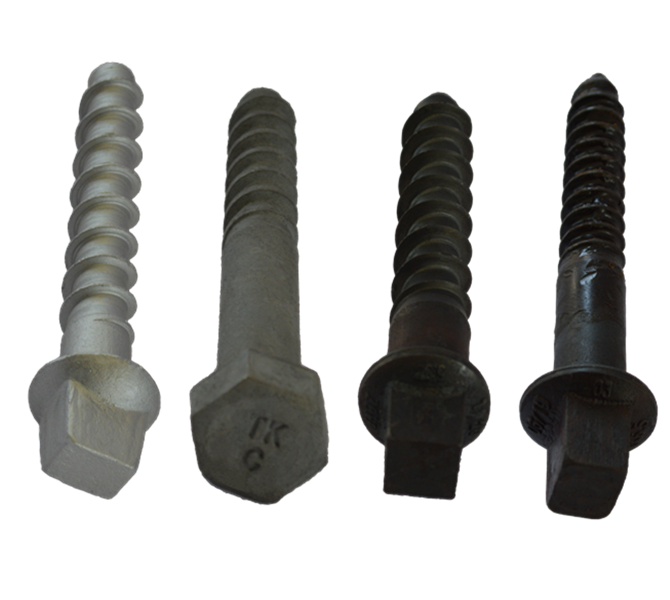

Screw Spike is also called rail screw or sleeper screw, it is used to fix the tie plate or fasten the rail to the sleeper with the help of a plastic dowel.

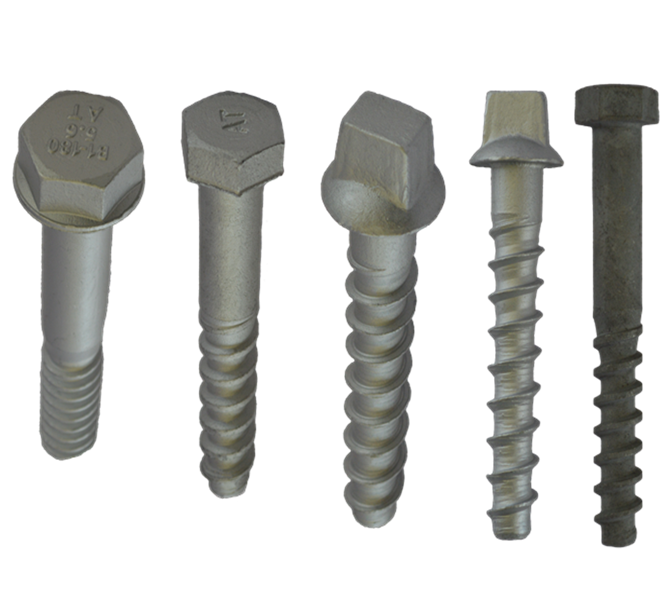

Generally speaking, Screw Bolts are mostly used in heavy rail applications, including square-head screw spike, double-head screw spike, hexagon screw spike, Ss series sleeper screw. Screw spikes are also called rail screw, track screw, sleeper screw.

Technical Support

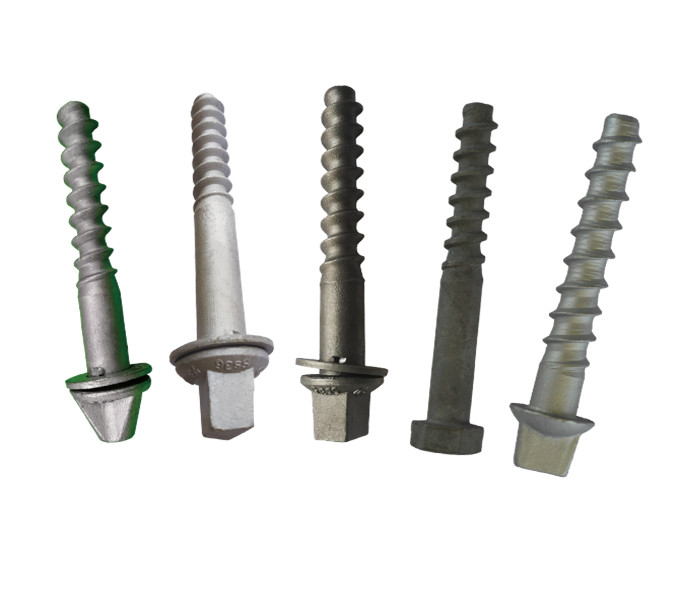

Product	Screw Spikes for Concrete Sleepers (Screw Bolts)
Raw Material	Alloy Steel 40Cr, 42CrMo, 35CrMo; Steel Q235, C35, C45
Grade	3.6/4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9
Surface	Plain, Oxide Black, Dacromet, or other upon requirements
Standards	UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, GB, VALEC, GOSTR- EASC, GB/T or other upon requirements
Weight	Depend on different models
Dimension	Depend on different models
Package	Moven bag, Box or other upon requirements
Delivery	Depends on order

Item	Type	Specification	Weight/kg

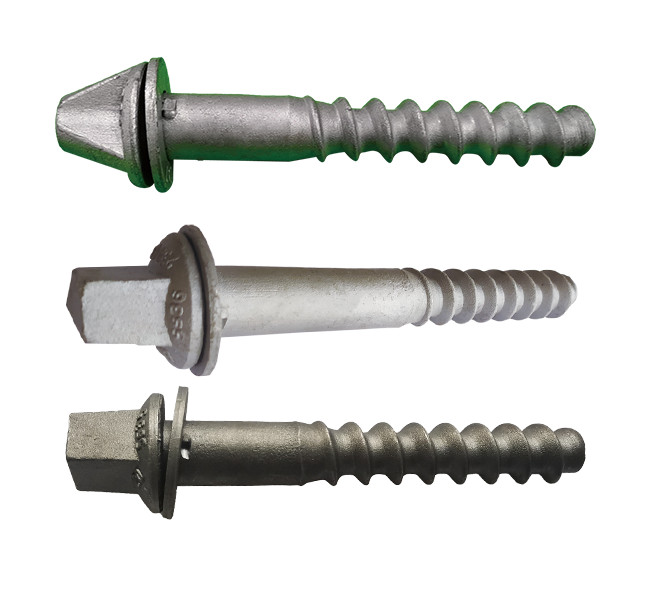

Ss series Sleeper Screw	Ss 1/130	M22*130	0.451
	Ss 1/150	M22*150	0.478
	Ss 2/180	M22*150	0.595
	Ss 5/150	M24*150	0.545
	Ss 6/150	M26*150	0.702
	Ss 7/180	M24*180	0.636
	Ss 8/140	M24*140	0.528
	Ss 8/150	M24*150	0.54
Square head screw spike		M22*145
		M22*155
		M22*165
		M22*185
		M22*195

China Railway Rail Spikes, Screw Spikes Manufacturer - Anyang Railway Equipment

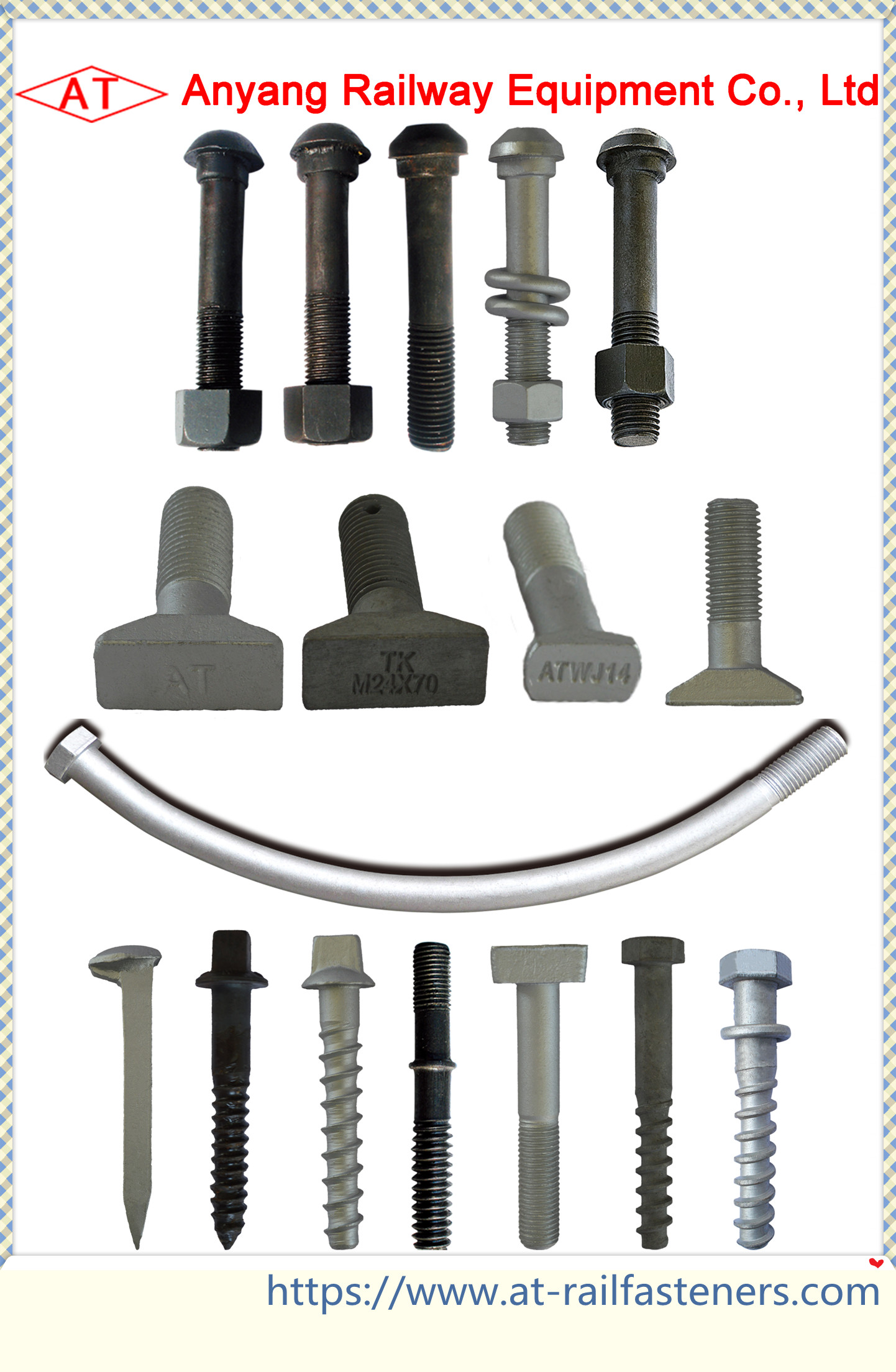

As the leading manufacturer of railway rail fasteners and rail joint parts in China, Anyang Railway Equipment Co., Ltd(AT) produces and supplies various railway spikes and railway bolts such as screw spikes, dog spikes, track bolts, tunnel bolts, anchor bolts, joint bolts, guard rail bolts, and related nuts and washers, etc.
